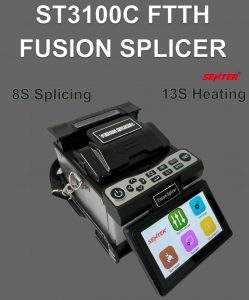

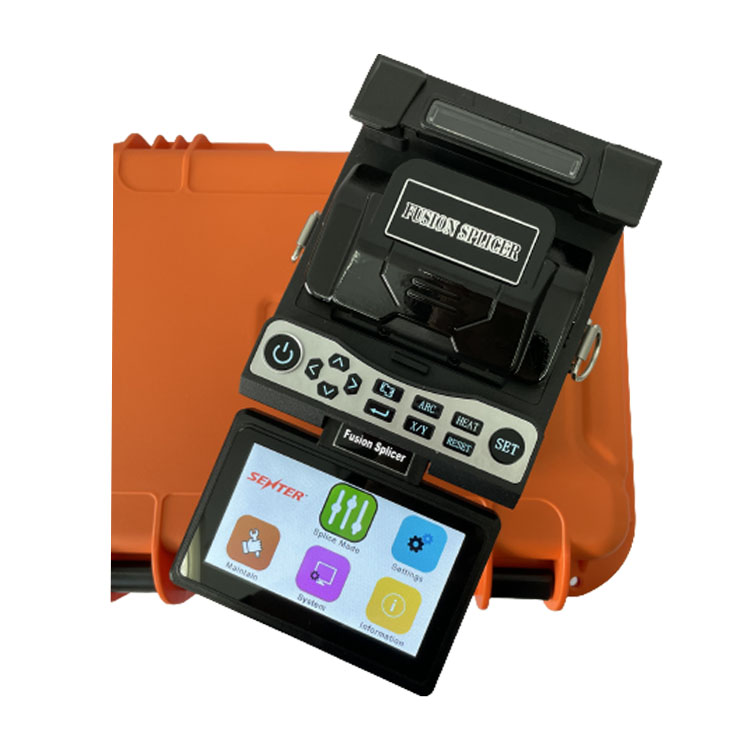

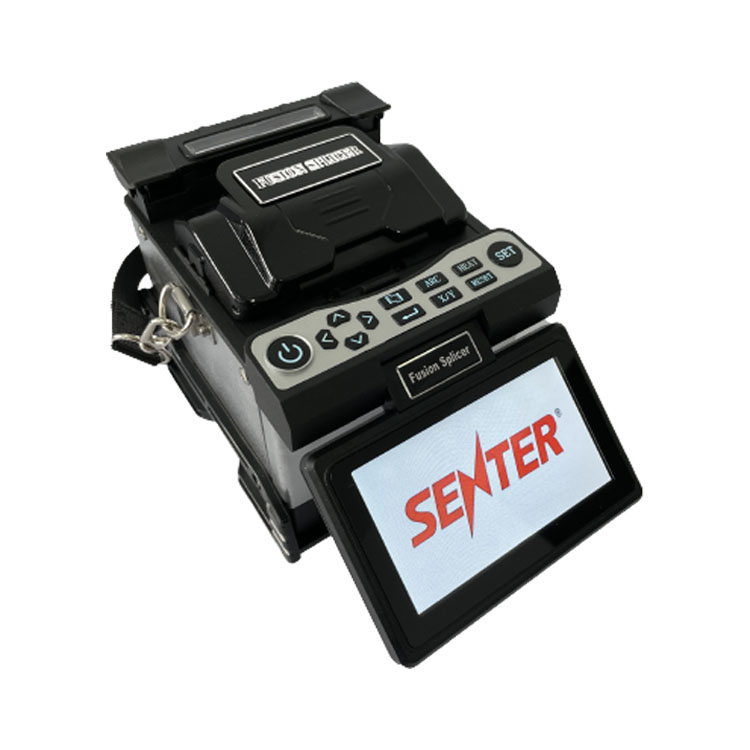

ST3100C optic fiber fusion splicer



Motors High precision 4 motors
Fiber Alignment PAS technology
Applicable fiber SM(G.652), EB(G.654), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Splicing Loss 0.02dB (SM), 0.03Db(EB), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS), 0.04Db(NZ/NZDS)
Diameter of cladding 80 -150μm
Diameter of coating 100 – 1000μm
Fiber cleaved length 8-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing mode 200 groups program, support Support user-defined modes and parameters, Manual, Half Auto, Auto
Splicing time 8s
Heating mode Full automatic inductive heating
Heating time 13s fastest at most,  adjustable according to different heat shrinkable tubes
Heat Shrinkable Sleeve 10-60mm
Storage of splice result 10000 results(auto circulation storage)
Return loss >60db
Loss evaluation Available
Working condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -20℃~+50℃;Wind speed: max 15m/s
Storage conditions Humidity: 0-95%;  Temperature: -20℃~+50℃(battery: -20℃~+50℃)
Tension test 1.96-2.25N
Viewing method and display Dual high camera 300 times micro magnification, 4.3 inch color LCD monitor
Fiber view magnification 300X(X or Y view), 180X(X and Y view)
Terminals  Interface USB port, for uploading splice results and upgrading software
Electrode life More than 5000 ARC discharges, can be replaced conveniently
Power supply Adaptor, input: AC100-240V(50/60HZ)
Battery capacity 5800mAh Li-battery, typical 240 cycles(splice and tube heat)

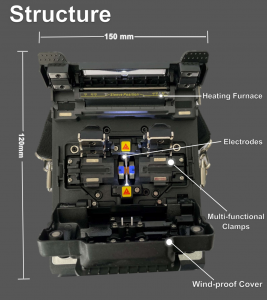

Dimension/ Weight 150mm(L)x120mm(W)x135mm(H);1.65kg including battery
