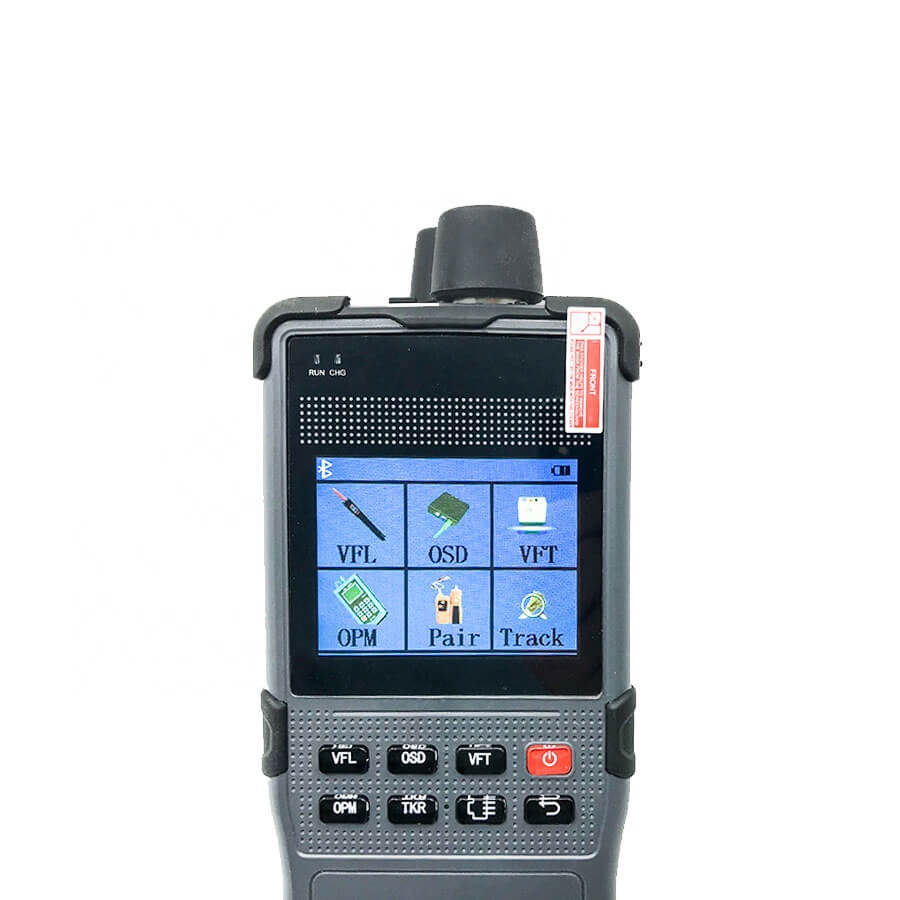

S120 PON Network Resource Analysis Terminal

S120 PON Network Resource Analysis Terminal is a kind of instrument specially designs for telecom operators to clean up optical fiber lines and capture user resource data. It integrates the functions of ONU status detect, verification, cable tracing, check line sequence, optical power meter, VFL and so on.

Product Features

ONU info: SN\PASSWORD\LOID\MAC
ONU status: Online, offline, drop, long light, OLT break, ONU break
Interaction mode: Support Bluetooth, QR code, barcode and other interaction methods, realizes auto verification
Quickly analyzes the actual data from the ONU to the OLT to provide more
optical network information and extended functions.
Compatible with optical power meter, VFL, cable tracing, check line sequence and other additional functions, with enhanced battery power supply

Product Parameters

For Optical Power Index
1. Wavelength range (nm):800~1700
2. Detector type: InGaAs
3. Power testing range:-70~+3 or (-50~+26)
4. Uncertainty: ±5%
5. Resolution: Linearity: 0.1%, Logarithm: 0.01dBm
6. Connectors: FC, ST, SC

For Visual Fault Locator Index
1. Emitter type: FP-LD
2. Working wavelength (nm):650±20nm
3. Output power: 1mW/3mW/5mW/10mW optional
4. Connectors: 2.5mm universal adapter(SC/FC/ST)
5. Optical output mode: CW and 1HZ
6. Fiber type: SM & MM

Application and After-Sales Service

Application:Used for telecom operators to clean up optical fiber lines and capture user resource data.
After-Sales Service:1 year warranty
