With the upgrade of GPON networks to XG(S)-PON, we have launched the new S120C to apply for the installation and maintenance testing of the upgraded Combo PON network.
By connecting S120C in series to the PON network, we can quickly and accurately extract OLT and ONU information, support testing GPON and XG(S)-PON at the same time.

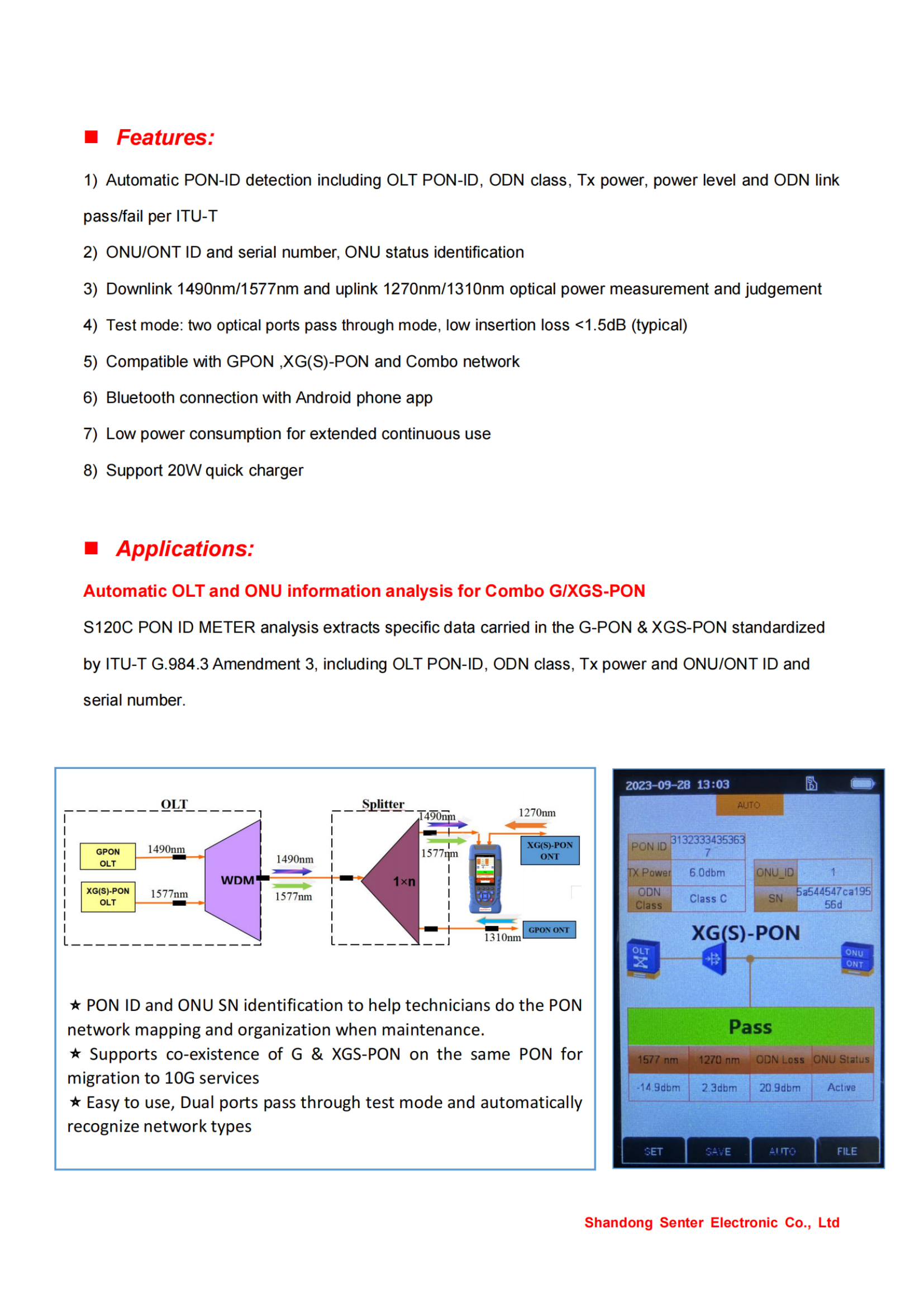

1) Automatic PON-ID detection including OLT PON-ID, ODN class, Tx power, power level and ODN link
pass/fail per ITU-T

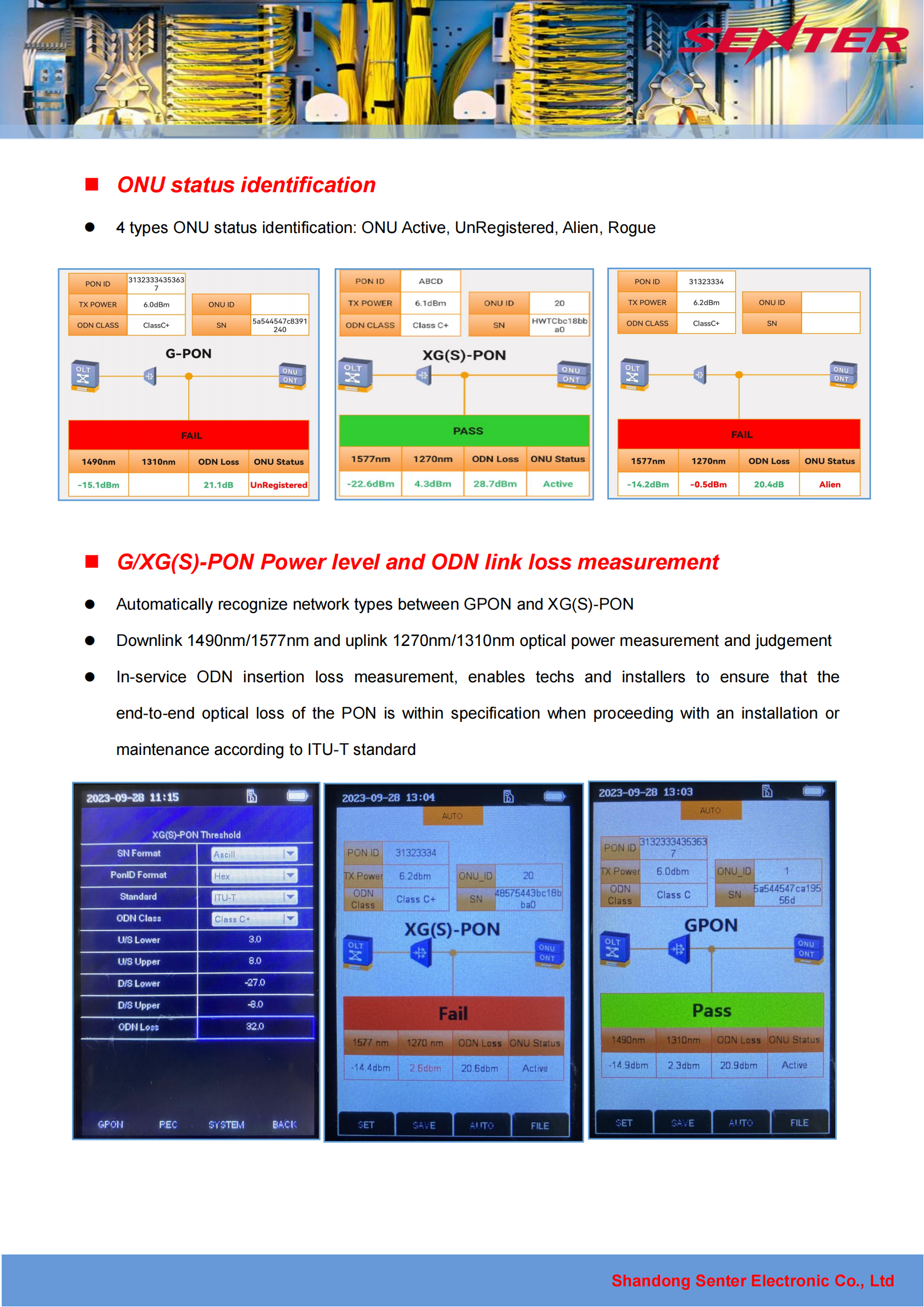

2) ONU/ONT ID and serial number, ONU status identification
3) Downlink 1490nm/1577nm and uplink 1270nm/1310nm optical power measurement and judgement

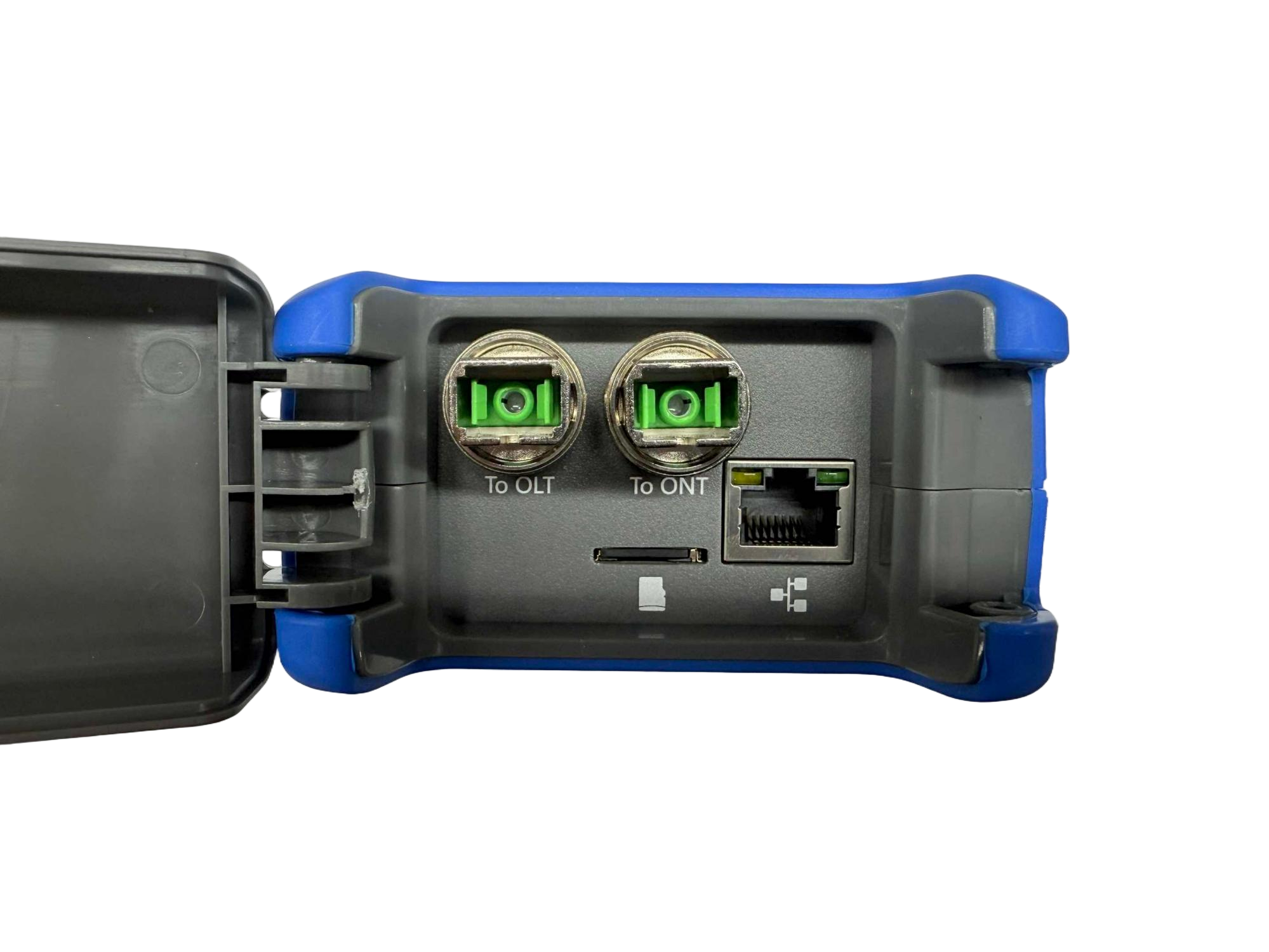

4) Test mode: two optical ports pass through mode, low insertion loss <1.5dB (typical)
5) Compatible with GPON ,XG(S)-PON and Combo network

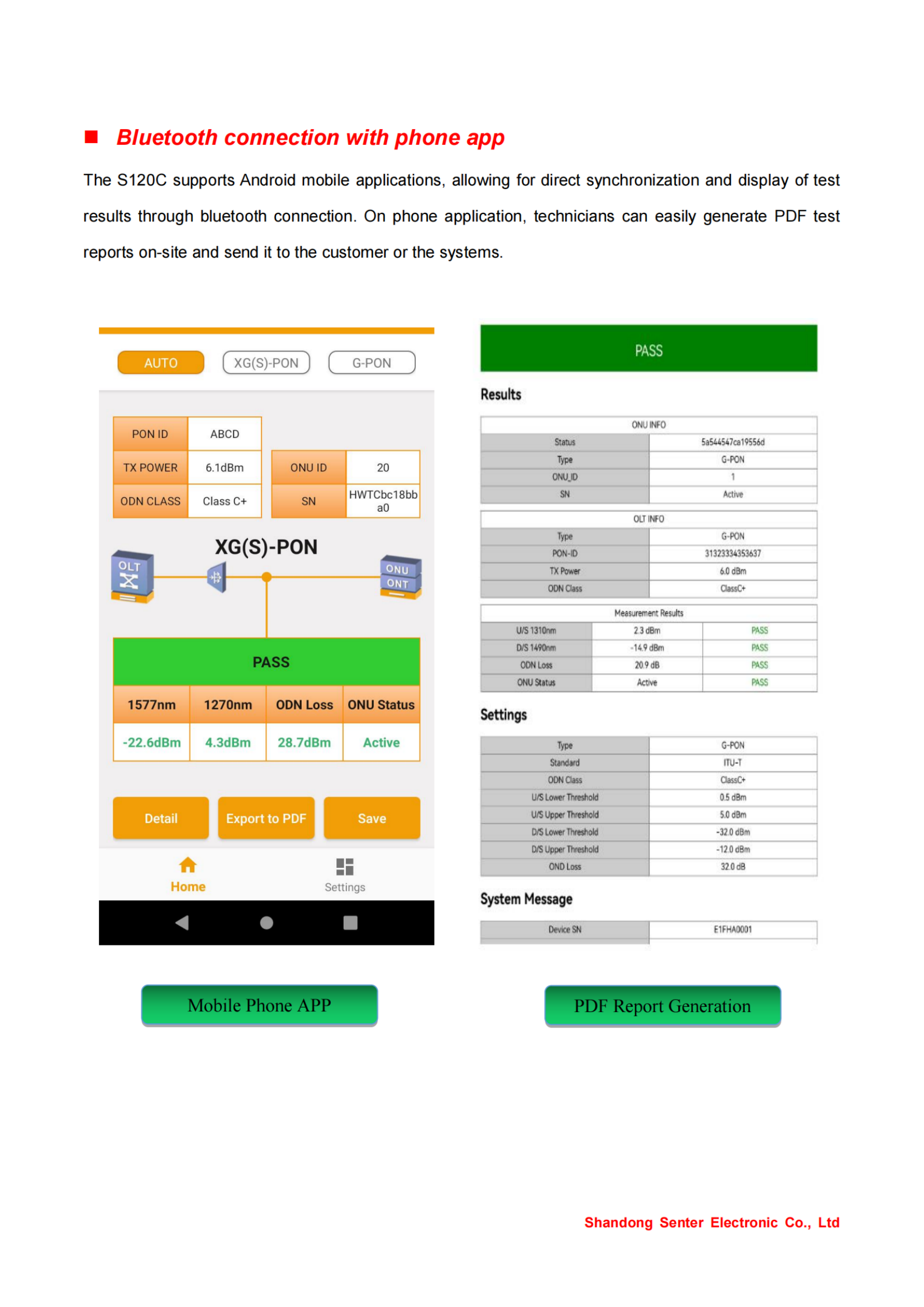

6) Bluetooth connection with Android phone app
7) Low power consumption for extended continuous use
8) Support 20W quick charger
