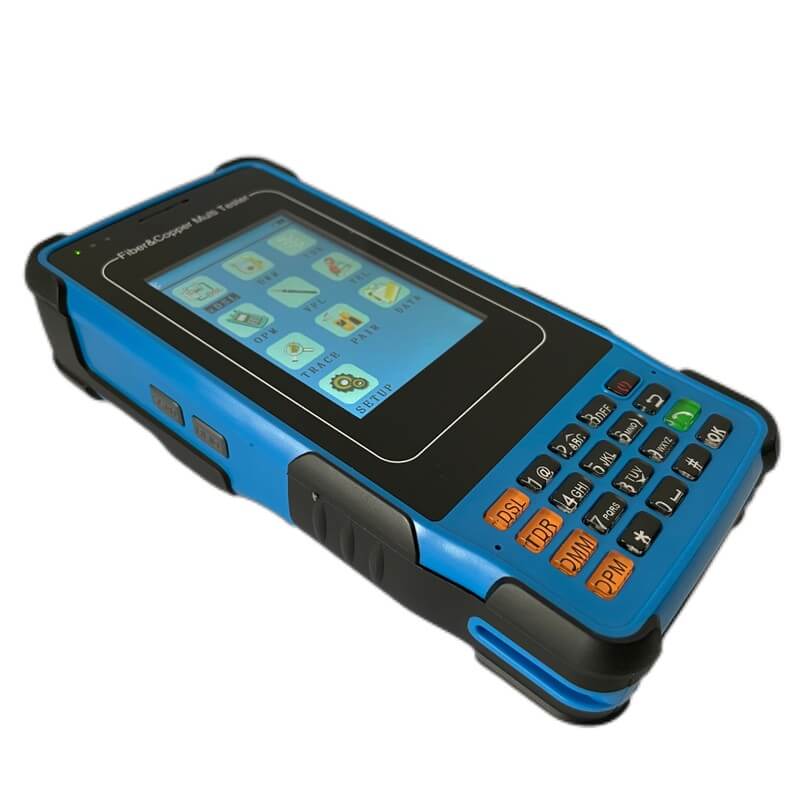

S600 VDSL Tester

S600 Fiber and copper multi tester is a series of portable instruments for operation and maintenance testing designed for communication telecom operators. S600 Fiber and copper multi tester integrates xDSL, DMM, TDR, optical power meter, red light, telephone, tracing, Bluetooth, charging and other functions.

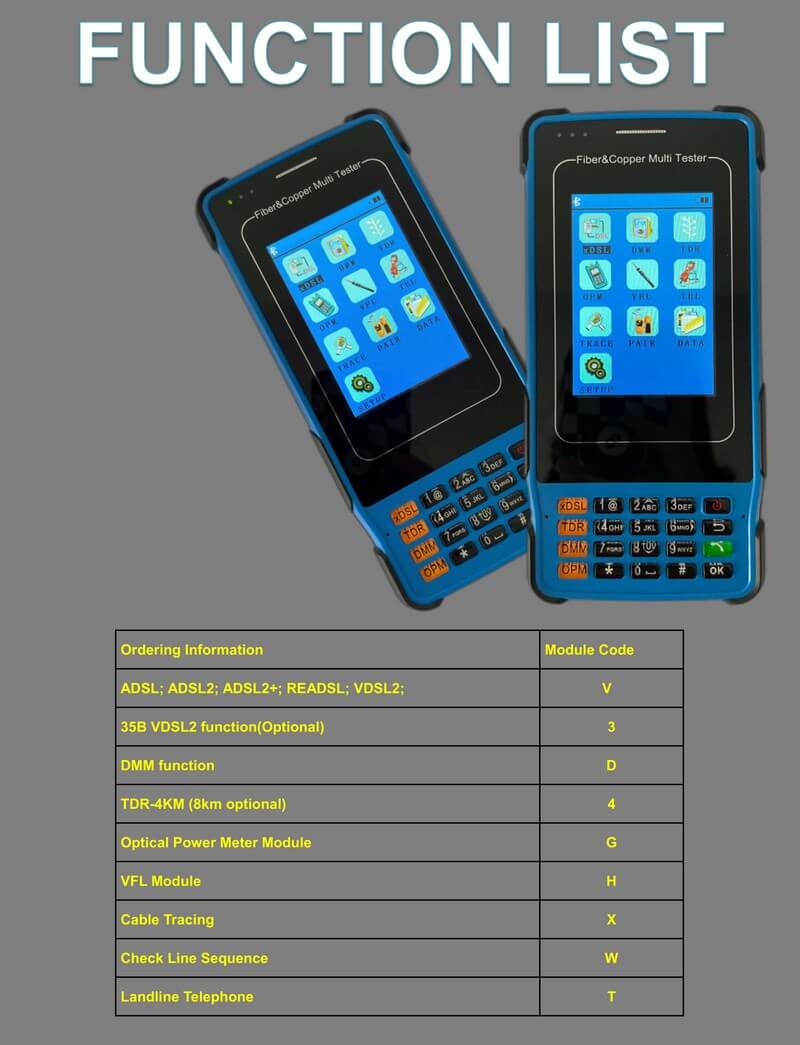

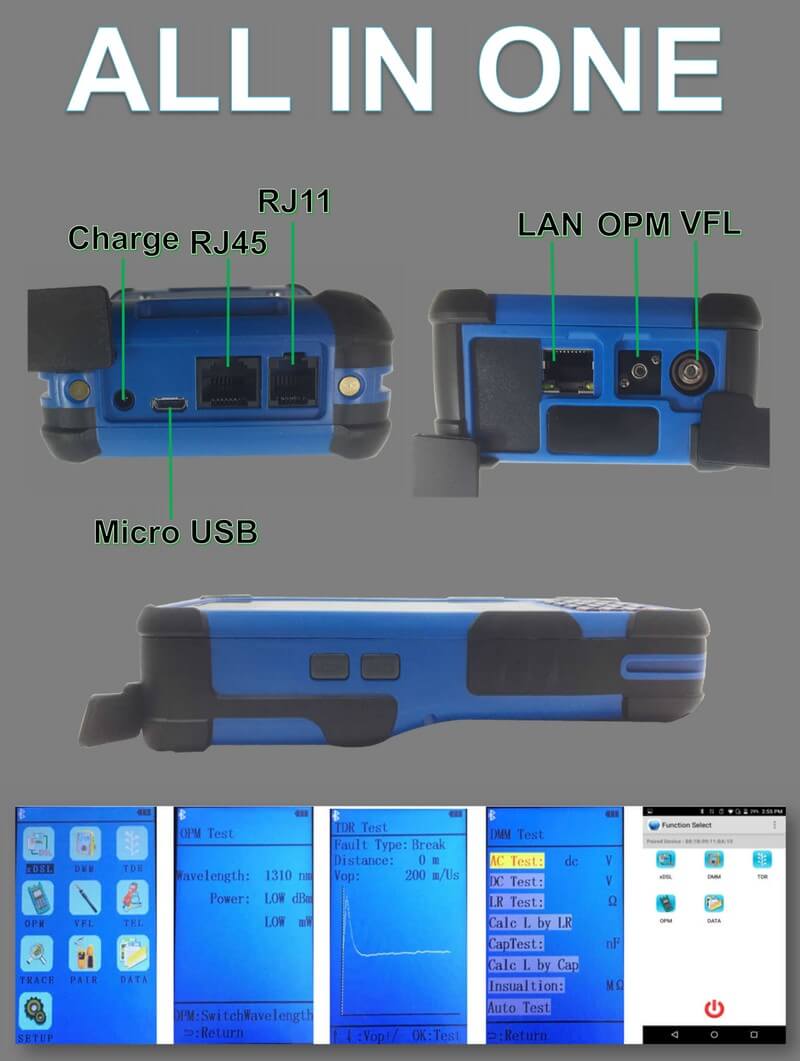

Product Features

1, 320*480 3.5 inch LCD
2, Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2 (30a, 35b profile is optional)
3, Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
4, Support VLAN, Vectoring, Compliant with all known DSLAMs
5, Supports Modem emulation and simulating login to Interne
6, Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
7. Rechargeable Li-ion Battery
8. Support optical power meter, VFL function
9. Support cable tracing, check line sequence, landline telephone function

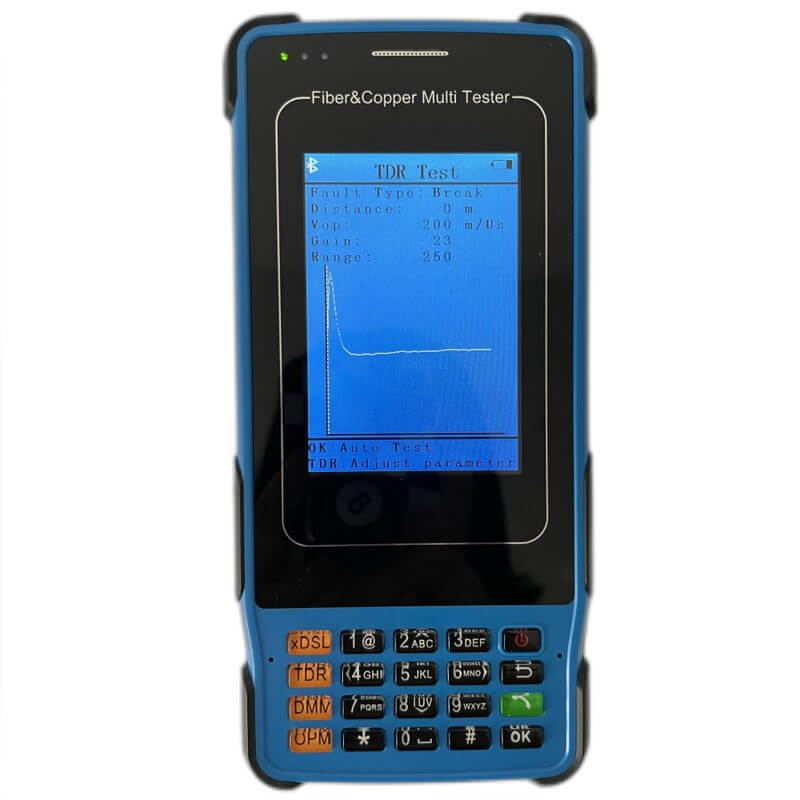

10. Support cable fault locator (TDR) function

s600 vdsl tester 6

Product Parameters

xDSL Index
xDSL test main functions Physical Layer Info

PPPoP Dial

FTP Client, Fixative IP

Network Layer Test

Modem Emulation

PING

Support VLAN,HLOG,QLN

Error Code Statistics

Bit Graph Display

BPT /SNR Data

Modem Parameter Setting(VPI/VCI)

ADSL Index
Standards ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL.
Attenuation: 0~63.5dB
Noise margin 0~32dB
Upstream Channel Rate (interweaved / fast mode) 0~1.2Mbps
Downstream Channel Rate (interweaved / fast mode) 0~24Mbps
The modulating bits in the DMT sub-channel 0~15 and each sub-channels’ frequency points
The number of error codes CRC, HEC, FEC, NCD, OCD
Other Parameters The output power of DSL

It can display every condition of the DSL line: lost signal and shutdown of link

VDSL2 Index
Standards ITU G.993.2 (VDSL2).Be compatible with ADSL2+, ADSL standard.
Upstream Channel Rate (interweaved / fast mode) 0-100M
Downstream Channel Rate (interweaved / fast mode) 0-100M
The modulating bits in the DMT sub-channel 0~15 and each sub-channels’ frequency points
The number of error codes CRC, HEC, FEC, NCD, OCD
Other Parameters The output power of DSL

It can display every condition of the DSL line: lost signal and shutdown of link

DSLAM information

Error seconds

INP pulse protection

SNR channel figure

Channel noise margin figure

Support profiles: Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
DMM Test Index
DC Voltage -400 to 400 V; Resolution: 0.1V
AC Voltage 0 to 290 V
Capacitance 0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF
Loop Resistance 0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2%
Insulation Resistance 0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ
TDR Index
General specifications Check line mix and break fault.

Auto and manual distance test

Test Range 8km(4km,16km,32km is optional)
Highest resolution 1km
Dead Zone 0m
Power consumption 1W
VOP Adjusting range 100-300 m/us
Distance test accuracy ≤1m
Pulse test voltage range ≥30V
Cable Tracking Index
Test cable type Network cable, twisted pair cable, telephone line, USB cable, coaxial cable.
Line status test Determine open or short circuit
Voltage polarity detection Positive and negative of DC voltage
Distance of signal transmission No less than 3km
DC Voltage No more than 48V
Check Line Sequence Index
Function Support generate network line signal to view the network check line sequence with the receiver
Feature Easy to operate: determine the line sequence by receiving side lights order
Optical Power Index
Wavelength range(nm) 800~1700
Photosensing material InGaAs
Power test range(dBm) -70~+10 or -50~+26
Error range ±5%
Display distinguishability Linear display: 0.1%;logarithmic display: 0.01 dBm
 Adapters FC, ST, SC
VFL Index
VFL FP-LD
Wavelength 650nm±20nm
Output power 1mw/3mw/5mw/10mw (optional)
Connector 2.5mm universal adapter(SC, FC, ST)
Working mode CW or 2Hz modulation
Applicable fiber SM / MM

s600 vdsl tester 7

Application and After-Sales Service

Application:Used for FTTH/FTTx(Optical fiber and copper cable testing)
After-Sales Service:1 year warranty
