Home » Products » Optical Fiber Tester » 1G/10G Pon Power Meter » S800C 10GPON ＆XGSPON Power Meter

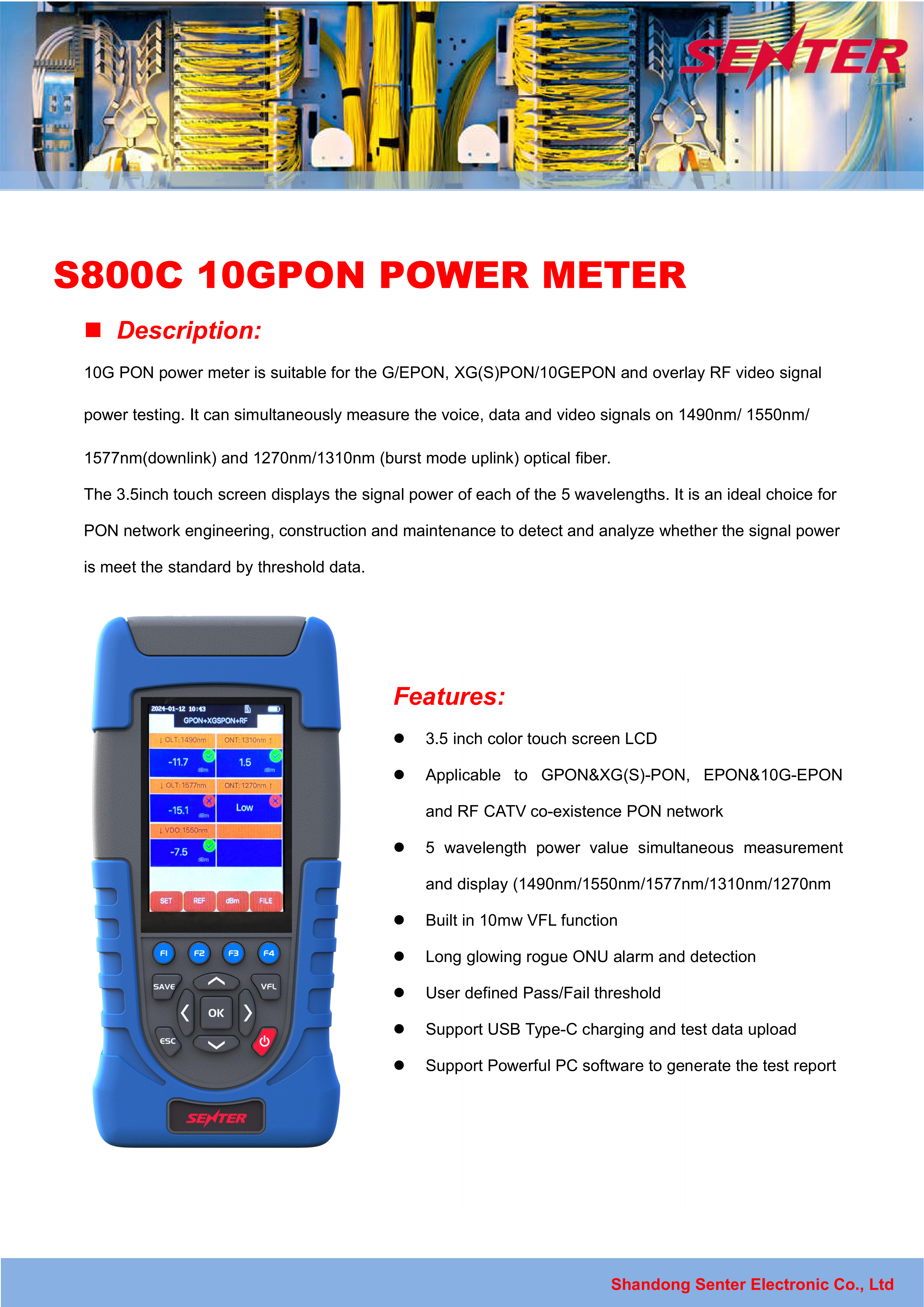

S800C 10GPON ＆XGSPON Power Meter

10G PON power meter is suitable for the G/EPON, XG(S)PON/10GEPON and overlay RF video signal power testing. It can simultaneously measure the voice, data and video signals on 1490nm/ 1550nm/ 1577nm(downlink) and 1270nm/1310nm (burst mode uplink) optical fiber.

The 3.5inch touch screen displays the signal power of each of the 5 wavelengths. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyze whether the signal power is meet the standard by threshold data.



Send Inquiry

Features:

S800C 10GPON POWER

3.5 inch color touch screen LCD

Applicable to GPON&XG(S)-PON, EPON&10G-EPON

and RF CATV co-existence PON network

5 wavelength 1490nm/1550nm/1577nm/1310nm/1270nm

Built in 10mw VFL function

Long glowing rogue ONU alarm and detection

User defined Pass/Fail threshold

Support USB Type-C charging and test data upload

Support Powerful PC software to generate the test report
