ST203 Cabel Tracker

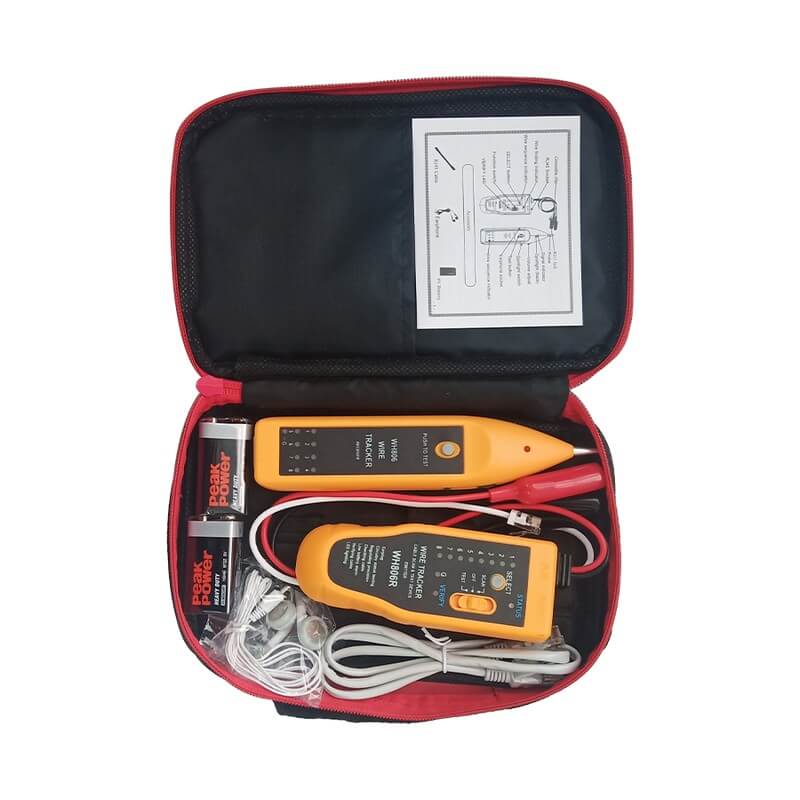

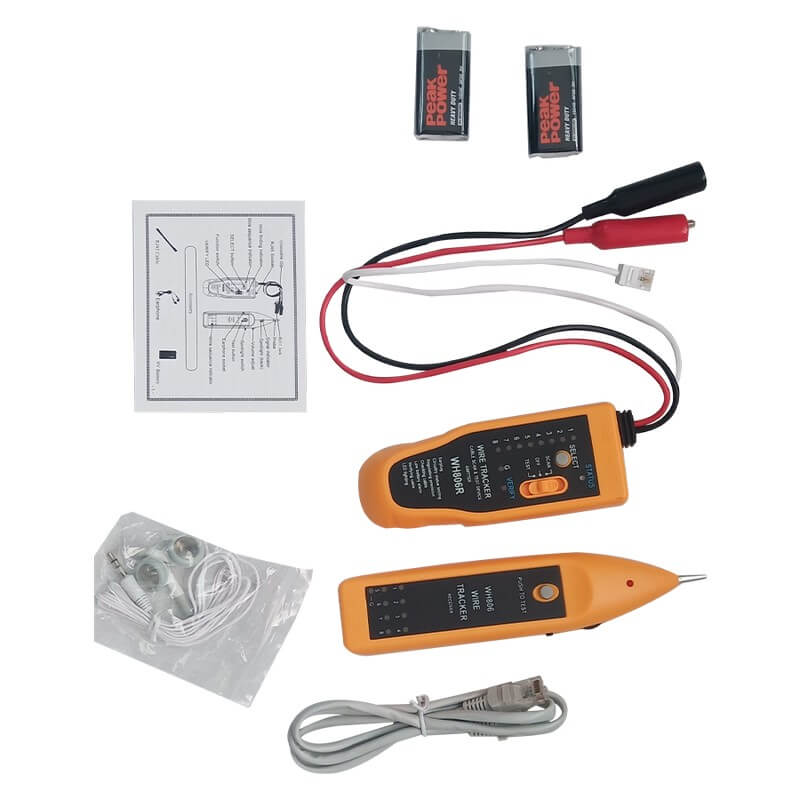

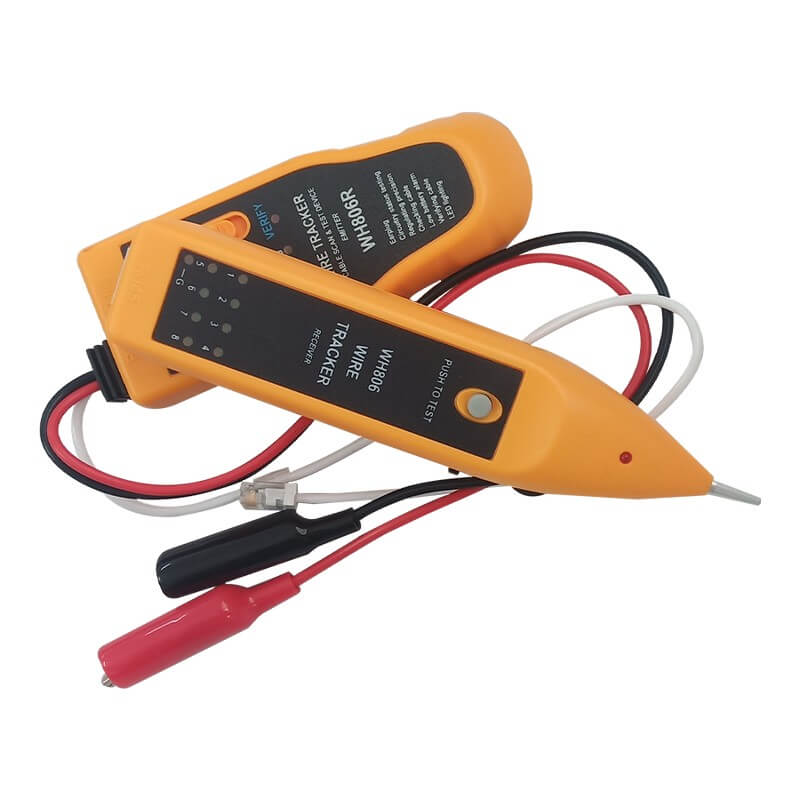

ST203 Wire Tracker is used to identify and trace wires or cables within a group without damaging the insulation. For telephone line, ST203 Wire Tracker can identify some state in the line, and more convenience to install, debug and maintain telephone line. There is a Sender and a Receiver included in the cable tracker. This professional telephone and network cable tracking system, consisting of receiver and emitter, enables you to find where a cable is laid and whether or not. -And, if so, whether there are any breaks points in the line.

Product Features

Cable state testing:
1. Line DC detecting and anode, cathode determinant.
2. Open, short and cross testing.
3. Bell signal detecting.
Volume regulates: according to regulate the sound magnitude.
Function of speed regulating: choice speed on testing.
Function of the earphone: in noisy environment, earphone can be used to prevent interference from the outside.
Volume adjusting: while find a wire, volume knob can be rotated for moderate level of sound.
Spotlight: can easily work as usual while putting on the light switch at night and in the dark

Product Parameters

General Specifications
Power 9V Battery
Product Color Yellow
Product Size Receiver Size: 173x36x23mm

Emitter Size: 125x46x25mm

The max working current Emitter: ≤ 9mA
Receiver: ≤28mA
Signal transmission format Multi-frequency impulse
Signal output electric status 8VP-P
Distance of signal transmission ≤3km

Application and After-Sales Service

Application: Used to identify and trace wires or cables within a group without damaging the insulation.
After-Sales Service: 1 year warranty
