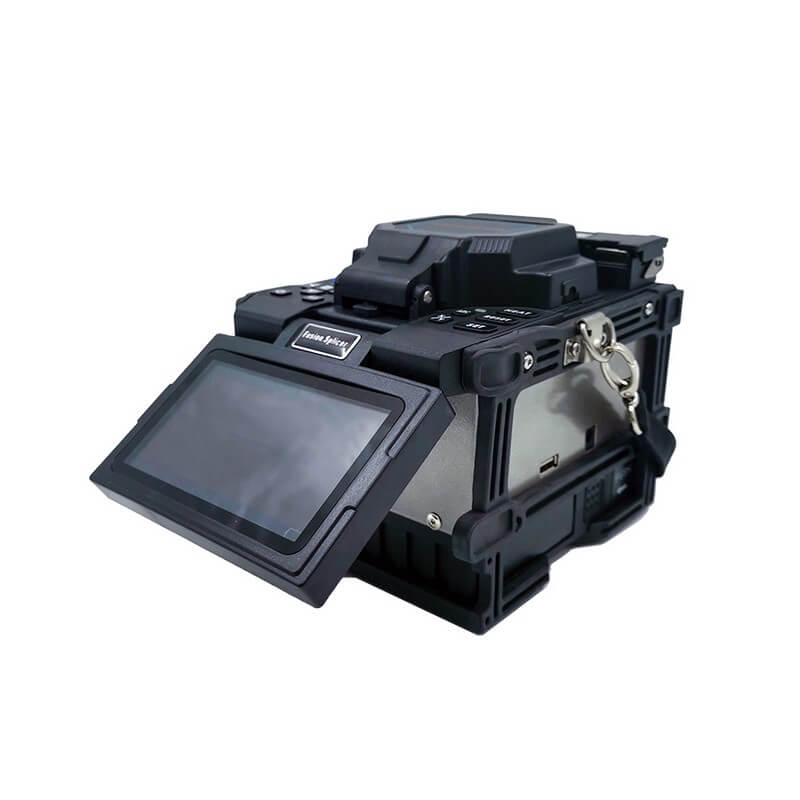

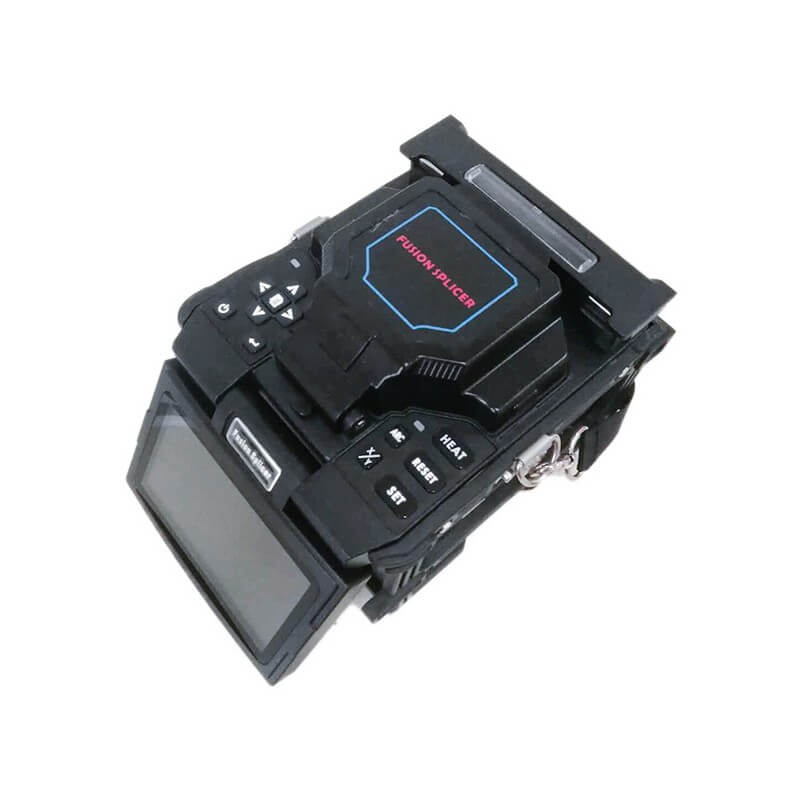

ST3100D 4 Motors Fusion Splicer

ST3100D Fiber fusion splicer is with 4 motors alignment technology, it has flexible and stable performance when aligning fibers. It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components. It is suitable for both indoor and outdoor fiber splicing projects. With smart appearance, reliable quality, ST3100D Fusion Splicer is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

Product Features

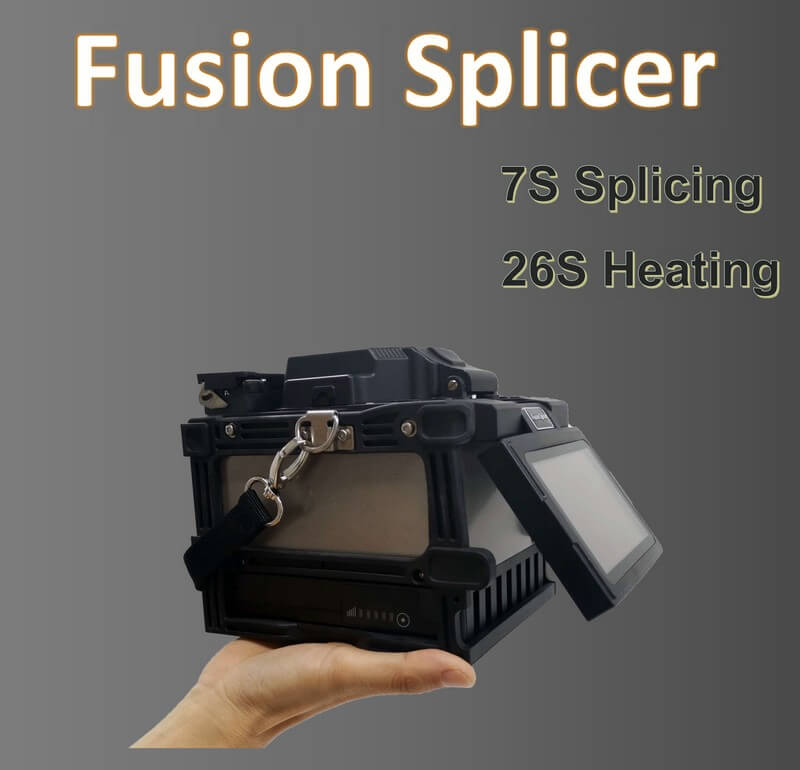

6s for splicing and 26s for heating
Electrodes discharging more than 4000 times
USB port for software updating and data records exporting,
PAS image digital processing system, core to core alignment,
ARC calibrated by temperature and air pressure automatically,

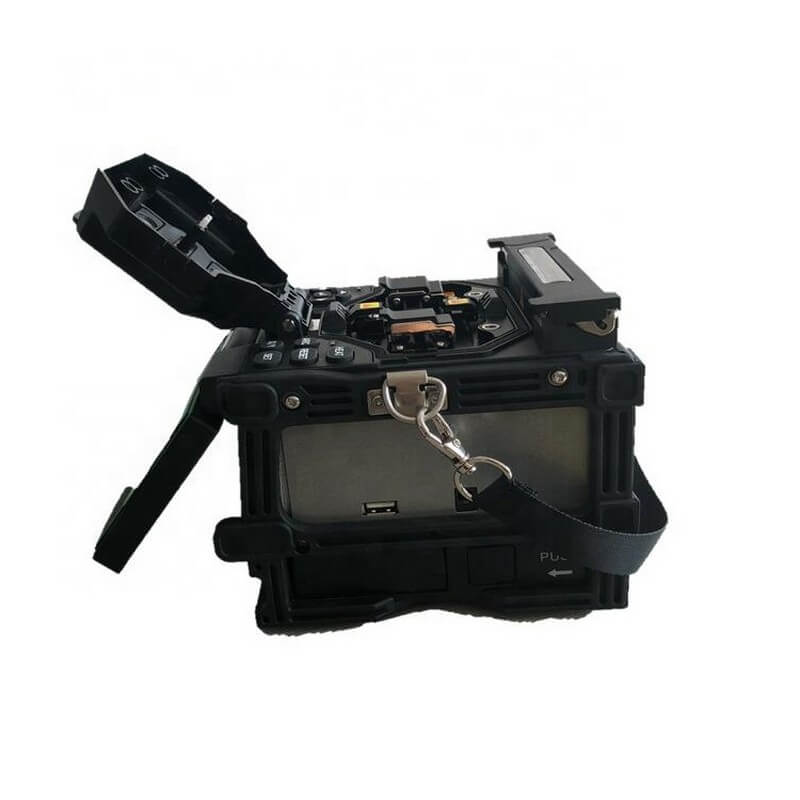

360° rubber armor protects machine from shock, water and dust
5800mAhLi-battery, more than 200 cyclessplicing&heating

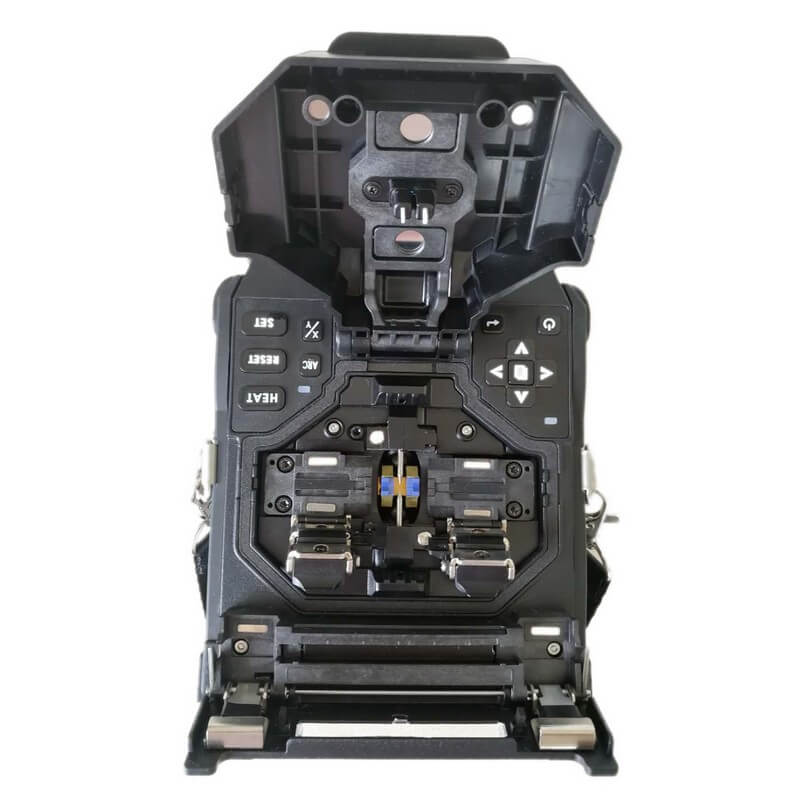

Multi-function holderclamps, apply tobare fibers, drop cable, pigtail etc.

st3100d 4 motors fusion splicer 7

Application and After-Sales Service

Application:Used for FTTH, FTTx
After-Sales Service:1 year warranty

st3100d 4 motors fusion splicer 8

Product Parameters

Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding 80 -150μm
Diameter of coating 160 – 900μm
Typical splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss >60db
Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program 40 groups
Operate mode Manual, Automatic
Auto-heating Available
Typical splicing time 6 seconds
Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification 250X(X or Y view), 125X(X and Y view)
Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result 4000 results
Loss evaluation Available
Tension test 1.8-2.2N
Interface GUI menu interface, easier operation
Battery capacity 5800mAh Li-battery, typical 200 cycles(splice and tube heat)
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 4000 ARC discharges, can be replaced conveniently
Terminals USB 2.0 port, for uploading splice results and upgrading software
Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
Dimension 149mm(L)x120mm(W)x127mm(H)
Weight 1.9kg including battery

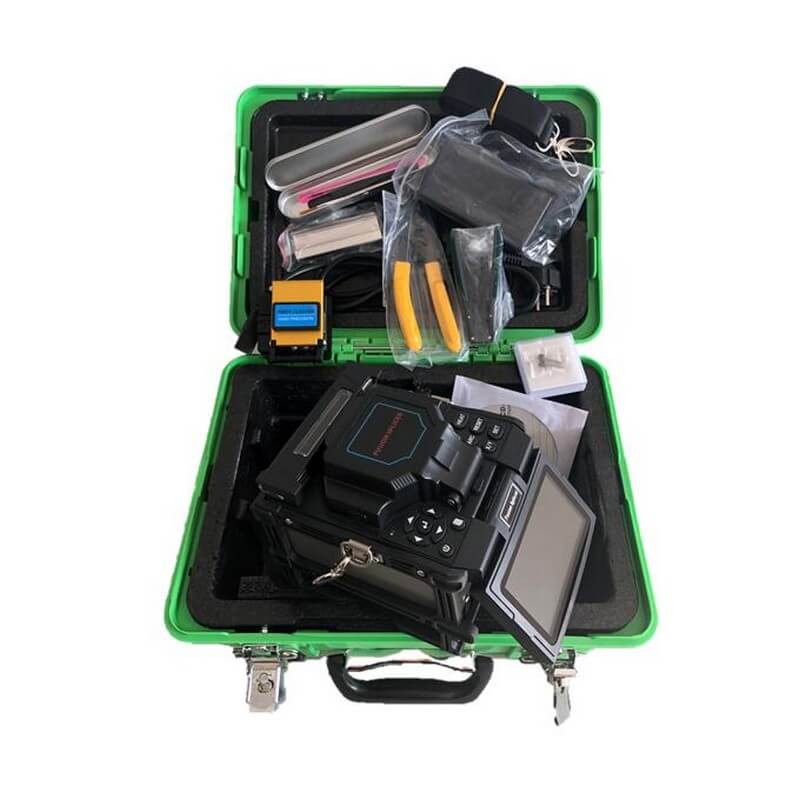

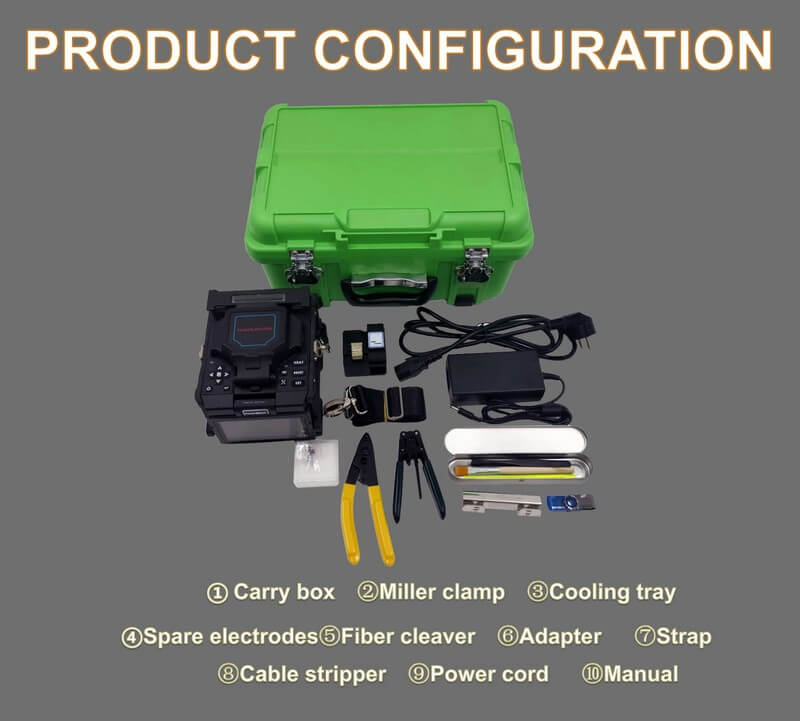

Package Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg

st3100d 4 motors fusion splicer 9
