ST3100F 4 Motors Fusion Splicer

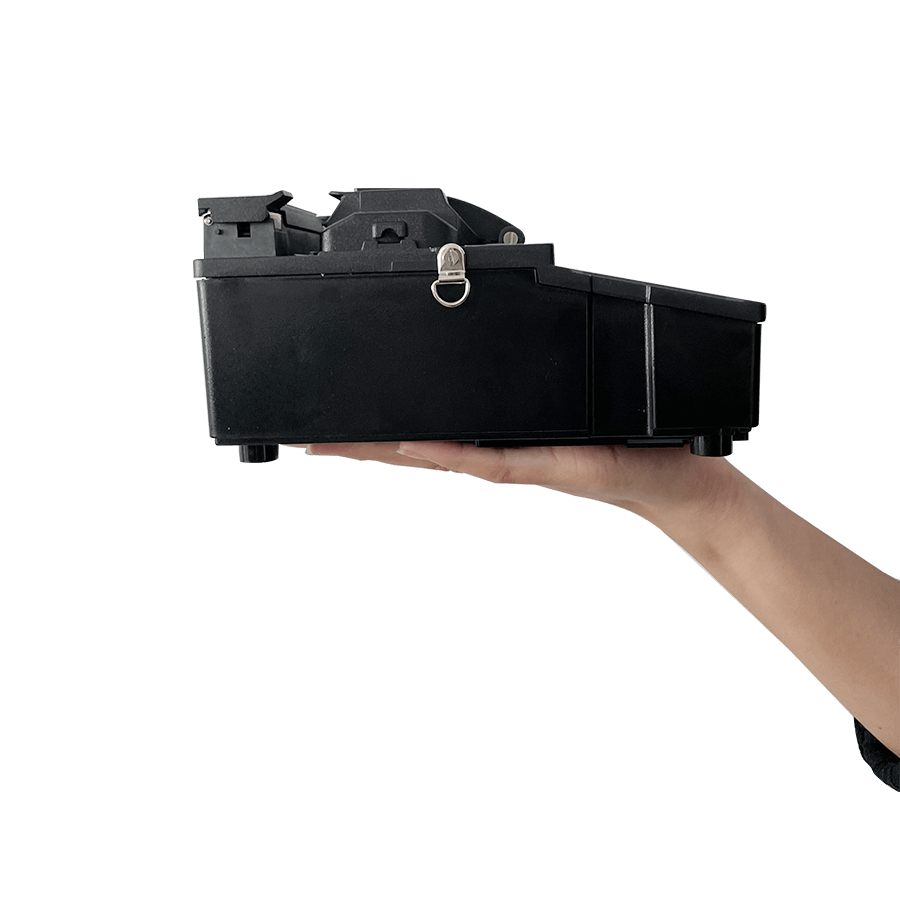

ST3100F Fusion splicer is the best choice for FTTx/FTTH projects: Small, light, easy to carry and operate, inductive automatic heater, big capacity battery, 4 motors active V-groove design, accurate alignment.

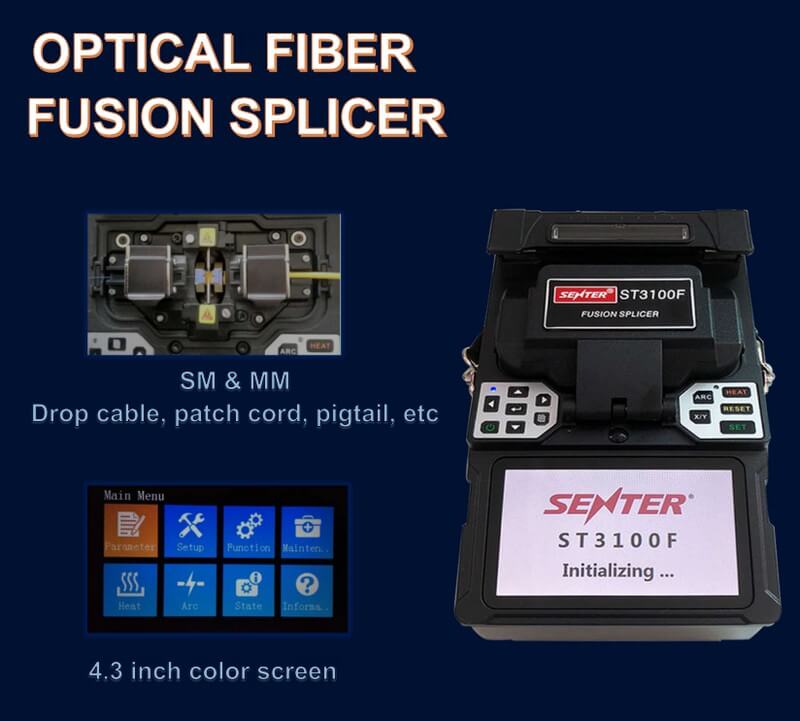

ST3100F Handheld Mini Fusion Splicer is a 4-motor fusion splicer with active V-groove design, this fusion splicer could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently. The machine adopts METRO-style menu, whose interface is simple, beautiful and convenience for operation. The operation interface has 8 icons, and each icon corresponds to different functional menu.

Product Features

Small, light, long battery life
4 motors accurate cladding alignment
250 times magnification of fiber cores
7s fast splicing, 26s intelligent heating
More than 4000 times electrodes discharging
4400mAh Li-batery, 220 cycels splicing and heating
Inductive automatic heater, not heating without fibers
3 in 1 multi-function clamps, new waterproof structure
Apply to bare fibers, drop cables and jumper wires splicing

st3100f 4 motors fusion splicer 7

Product Parameters

Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding 80 -150μm
Diameter of coating 160 – 900μm
Typical splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss >60db
Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program 40 groups
Operate mode Manual, Automatic
Auto-heating Available
Typical splicing time 7seconds
Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification 250X(X or Y view), 125X(X and Y view)
Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result 4000 results
Loss evaluation Available
Tension test 1.8-2.2N
Interface GUI menu interface, easier operation
Battery capacity 4400mAh Li-battery, typical 220 cycles(splice and tube heat)
Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life More than 4000 ARC discharges, can be replaced conveniently
Terminals USB 2.0 port, for uploading splice results and upgrading software
Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s

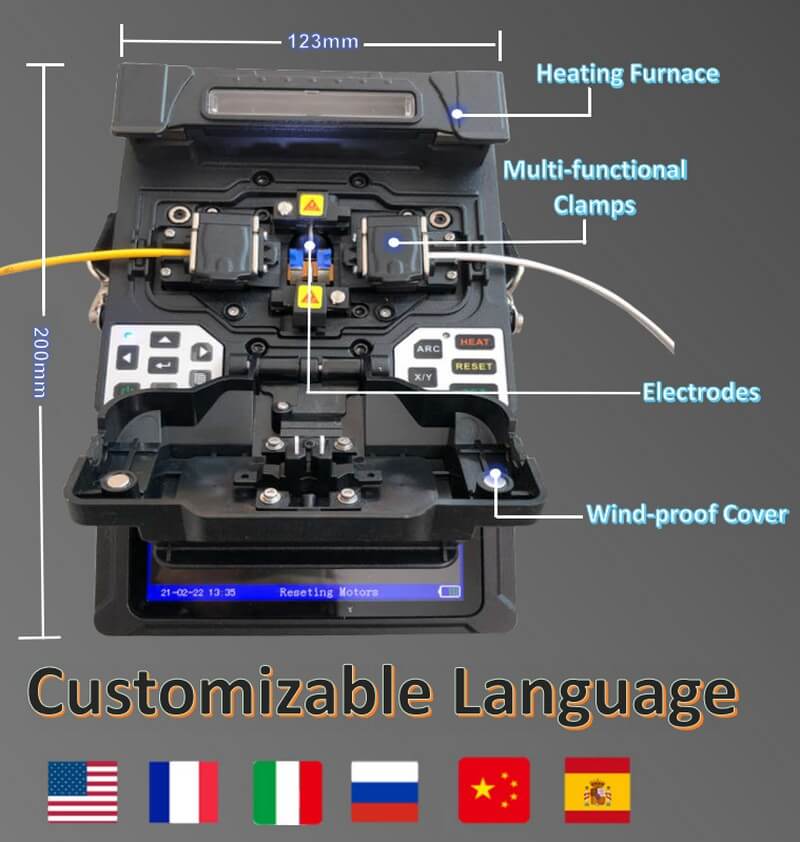

Dimension 200mm(L)x123mm(W)x95mm(H)
Weight 1.6kg including battery

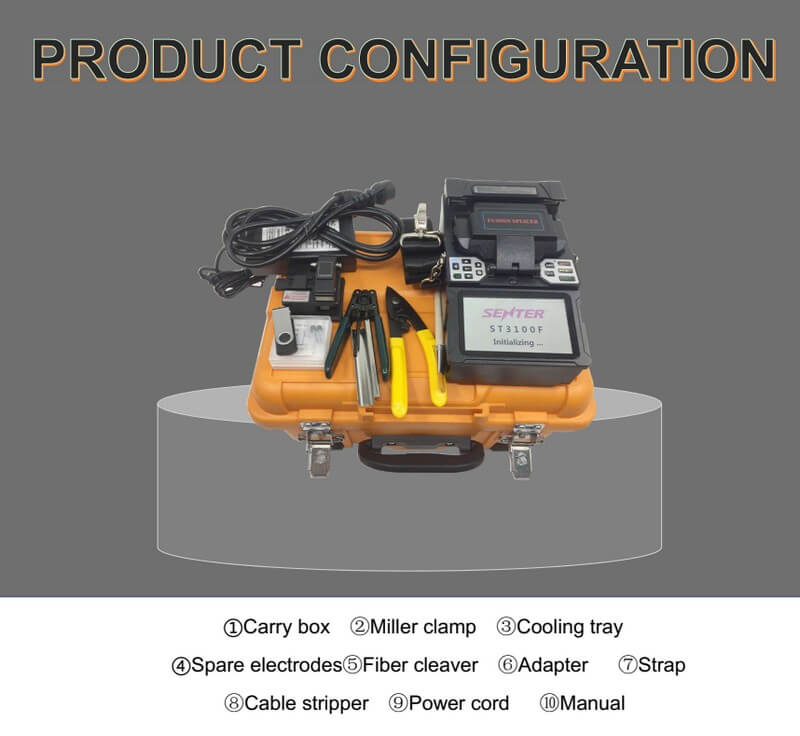

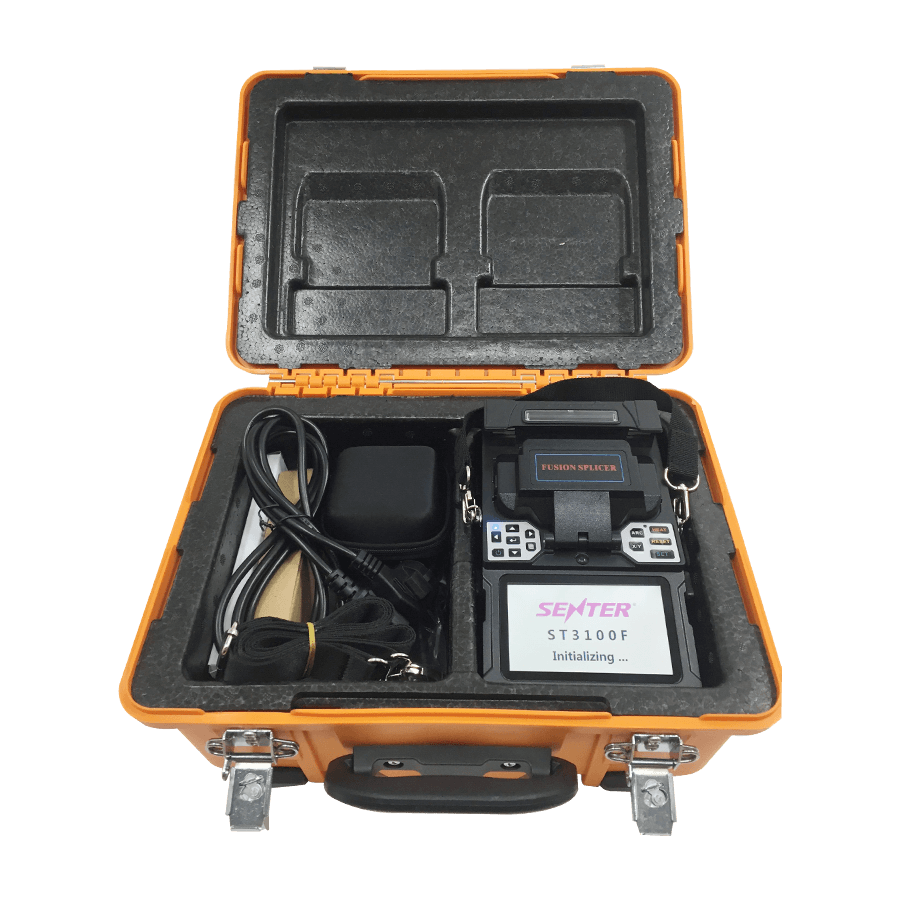

Package Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.3kg

st3100f 4 motors fusion splicer 8

Application and After-Sales Service

Application: Used for FTTH/ FTTx
After-Sales Service: 1 year warranty
