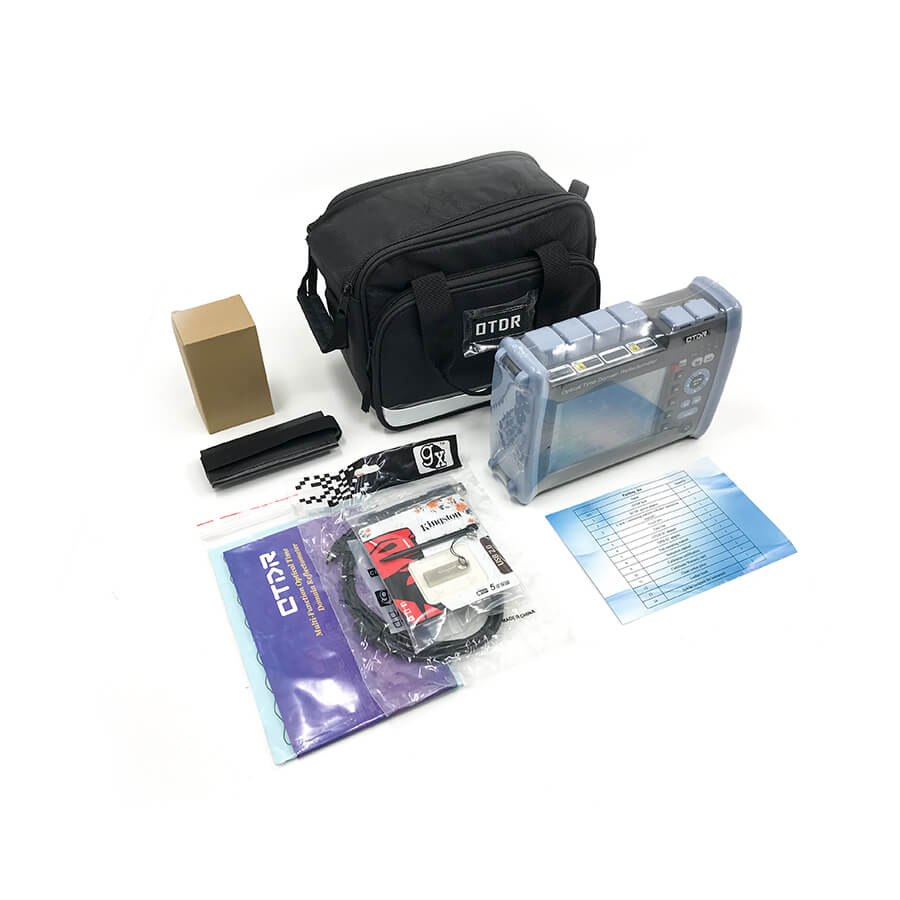

ST3200C-P Pon OTDR

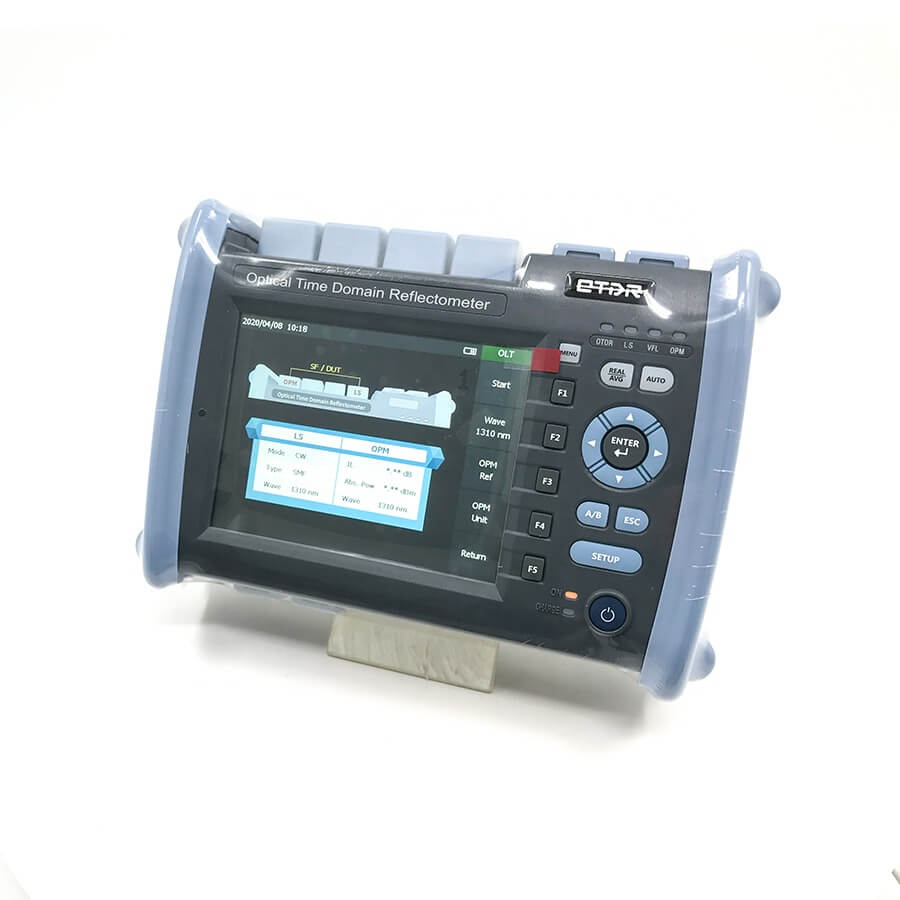

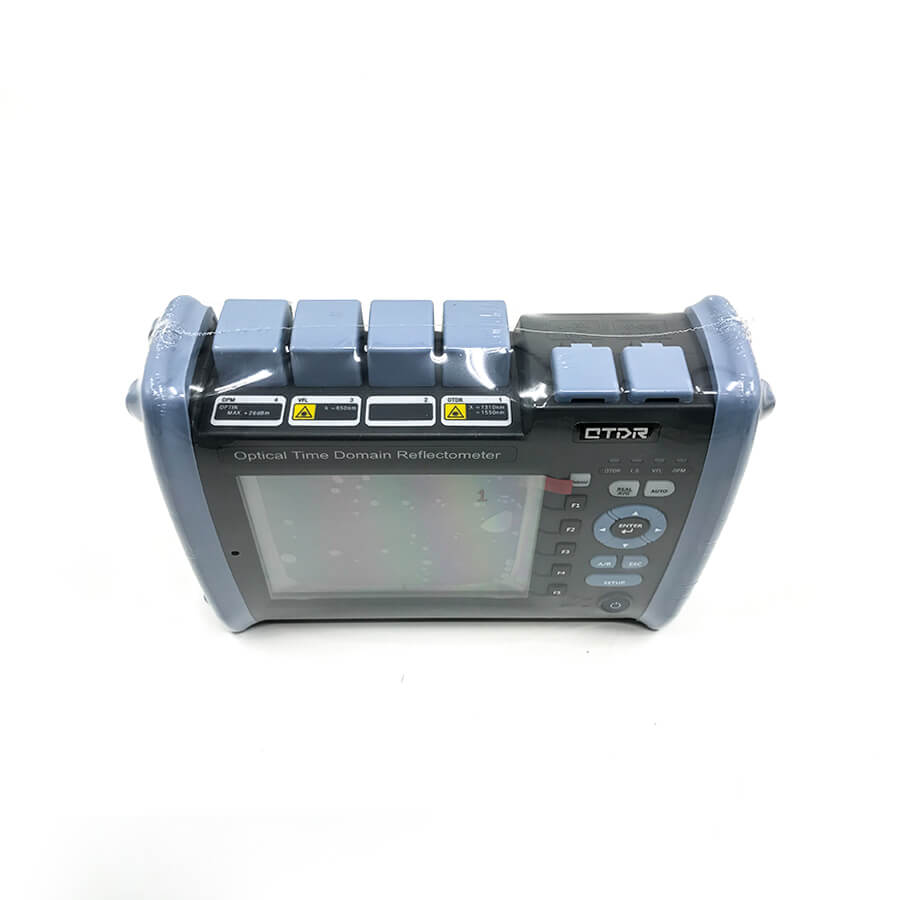

ST3200C- PON OTDR adopts 5.6 inch color screen, double operation of key and touch. It has a max dynamic range of 45dB, and can penetrate 1:64 optical splitter in PON network test; the whole machine integrates Visual Fault Location, Event Map, Optical Power Meter, Light Source, Optical Loss Test, Optical End Face Detection functions, multi-functional integration to help customers efficiently solve the field test and maintenance. ST3200C- PON OTDR is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, emergency repair of communication system of optical fiber communication system, development and production measurement of first-class optical fiber cable.

Product Features

PON network test, penetrate 1:64 splitter
Milt-language: Chinese, English, Russian, Korean, Spanish, Portuguese
Standard SOR file output format

Product Parameters



Model P1 P2 P3 P4 P5 P6 P7
Wavelength 1310nm±20nm


1625nm±20nm (Filtered) 1650nm±15nm (Filtered) 1310nm/1550nm±20nm



1650±20nm (Filtered)

Filter / High pass > 1595nm    Isolation >50dB (1270nm-1585nm) Bandpassl650nm±7nm

Isolation >50dB


High pass>1595nm  Isolation>50dB (1270nm’1585nm) Bandpassl650nm ±7nm lsolation>50dB

(1650nm ±7nm)

Fiber type G.652
Max Dynamic Range 37/35dB 38dB 38dB 38/36/36 40/38/38 42/40/40 38/36/36dB
Event Blind Zone Im 0.8m
ATT Blind zone 6m 6m
PON Blind zone 30m
Test Range 500m/1km/2km/4km/8km/16km/32km/64km/128km/256km
Pulse Width 3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1000ns/3000ns/5000ns/8000ns/10000ns/20000ns
Range Accuracy ± (0.75m+ Sample interval+0.005% ×Test distance)
Loss Resolution ±0.001dB
Loss Accuracy ±0.05dB/dB
Sample Points 16k~256k
Sample Resolution 0.05m-16m
Reflection Accuracy ±3dB
File Format SOR Standard File Format
Loss Measurement Mode 4-point method /5-point method
Laser Safety Level Class II
Refresh Rate 3Hz (Typ.)
Data Storage Internal storage: <3000 curves; External storage: 4G bit
Connector FC/UPC (Interchangeable SC ST)
Data Interface USB, Mini-USB, 10M/100M Ethernet Port    10M/100M Ethernet Port
Wavelength range 800nm-1700nm
Connector Universal joint FC/SC/ST
Test Scope -50dBm〜+26dBm
Uncertainty ±5%
Calibration Wavelength 850/980/1300 /1310/1490/1550/1625 /1650nm
Laser Type FP – LD
Wavelength Consistent with OTDR output wavelength
Output Power 2-5dBm
Stability CW, ±0.5dB/15min (Test after 15 minutes of preheating)
Connector FC/UPC (Interchangeable SC ST)
Wavelength 650nm±20nm
Output power ≥ 10 m w
Mode CW/1Hz/2Hz
Connector FC/UPC (Interchangeable SC ST)
The Optical Loss Test index refers to the above LS and OPM index.
Display 5.6 inch color LCD + touch screen
Power Supply AC/DC Adapter: Input: 100V~240V, 50/60Hz, 0.6A, Output: 12V-19V, 1.5, A Li- Battery: 7.4V, 5200mAh
Working Temperature -10°C 〜+50°C
Storage Temperature -40°C~+70°C
Relative Humidity 0 〜95%, Non Condensing
Weight ≤1.2kg
Size 227 mm × 160mm × 70mm

Application and After-Sales Service

Application:Used for FTTH, FTTx, and used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable.
After-Sales Service: 1 year warranty
