ST3200F Mini OTDR

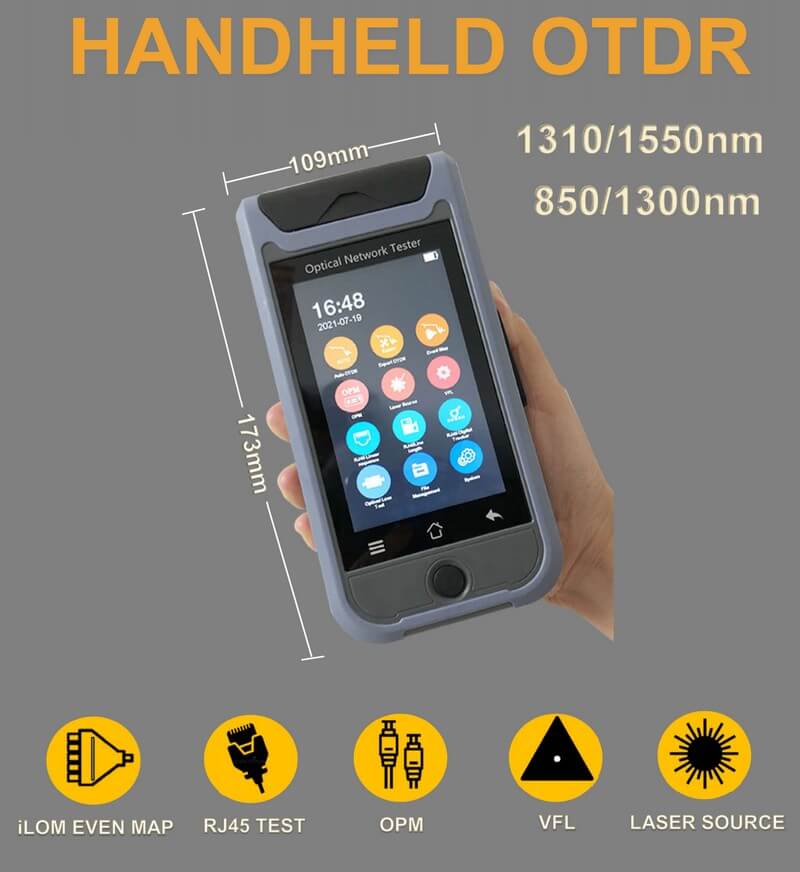

ST3200F series OTDR adopts 4.3 inch capacities touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and “computer level” file management to meet various test requirements in different occasions. ST3200F series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.

Product Features

Expert OTDR: Professional measurement, curve/list/map are displayed simultaneously.
Auto OTDR: no complex settings, one key test.

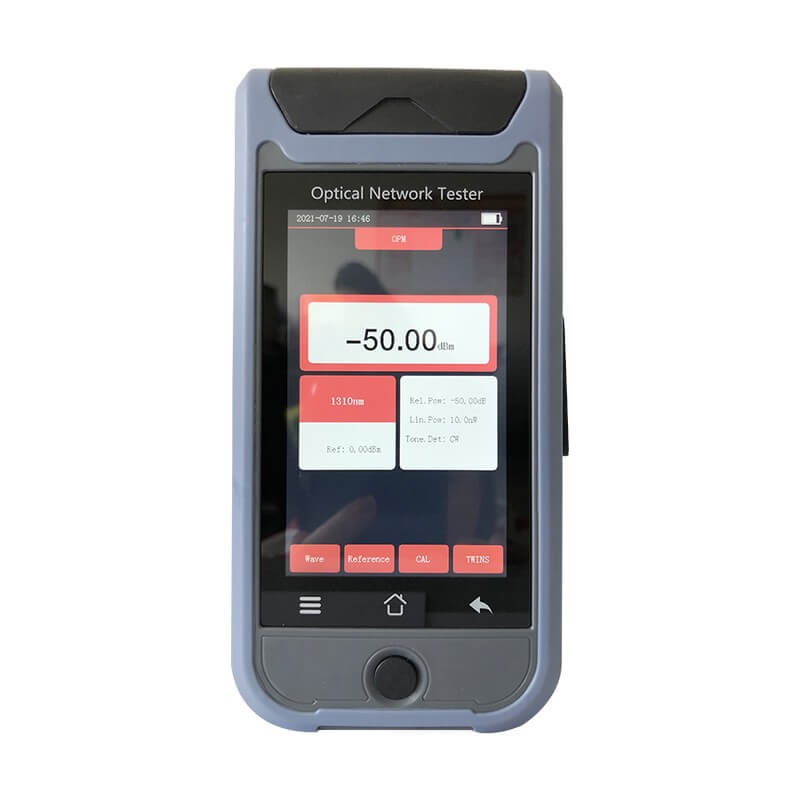

OPM supports CW/270/330/1k/2kHz frequency identification.

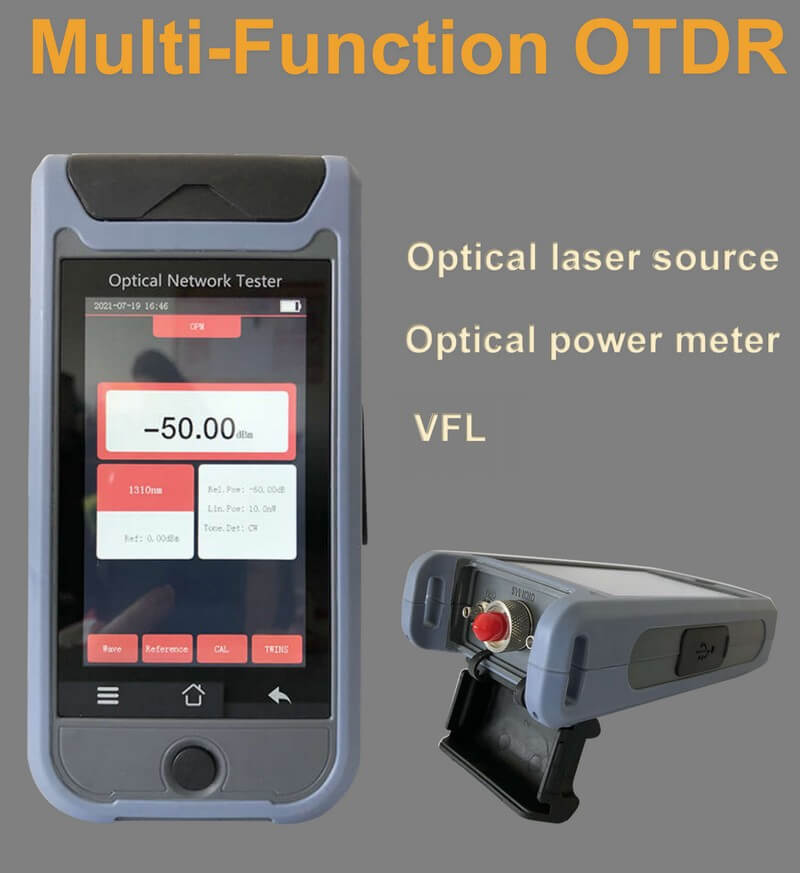

VFL and LS can run in the background, multi task can be operated simultaneously.
LS supports CW/ modulation mode output with adjustable output power.
RJ45 cable tracker of digital radar, stronger anti-jamming ability.
Auto OTDR, expert OTDR, event map, OPM, LS, VFL,RJ45 cable sequence, RJ45 cable tracker, RJ45 cable sequence, RJ45 cable length, end face detection, flash light optical loss test.

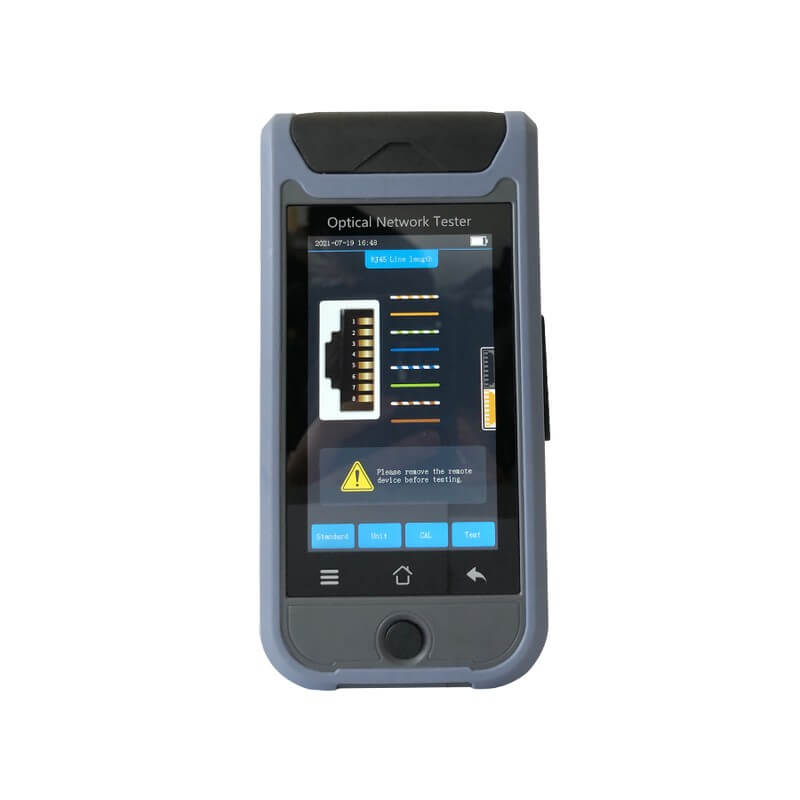

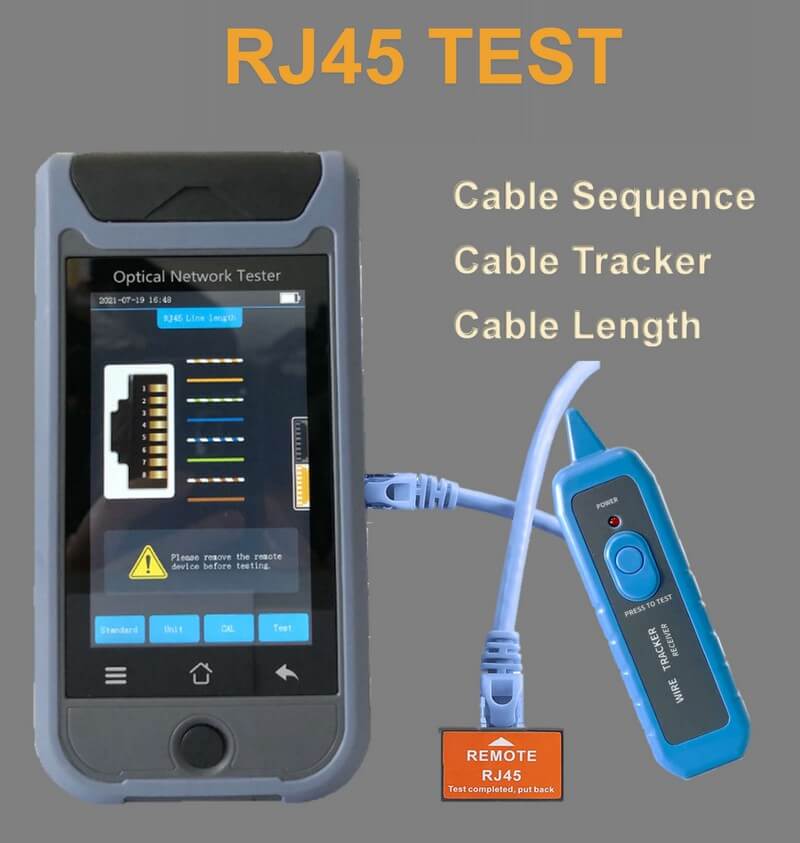

RJ45 cable sequence, cable length test, up to 300m.
One click screen capture, easy to save the interface.
Support ILOM.
Support SC/APC

st3200f mini otdr 6

st3200f mini otdr 7

st3200f mini otdr 8

st3200f mini otdr 9

st3200f mini otdr 10

Product Parameters

Model ST3200F-A ST3200F-F ST3200F-C ST3200F-D ST3200F-E
Type G.652  MM
Wavelength 1310/1550±20nm 1310/1550±20nm 1625nm 1650nm 850/1300nm(MM)
Dynamic Range 26dB/24dB 24/22dB 22dB 22dB 22/24dB
Event Blind Zone 2.5m
ATT Blind Zone 8m
Test Range 500m/1km/2km/4km/8km/16km/32km/64km/100km
Pulse Width 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us
Ranging Accuracy ± (1m+Sample interval+0.005% ×Test distance)
Linearity ≤0.05dB/dB
Sample Points 16k~128k
Sample Resolution 0.05m~8m
Loss Resolution 0.001dB
Loss Threshold 0.20dB
Range Resolution 0.001m
Refractive Index 1.00000-2.00000
Reflection Accuracy ±3dB
File Format SOR Standard File Format
Loss Analysis 4-point method /5-point method
Laser Safety Level Class II

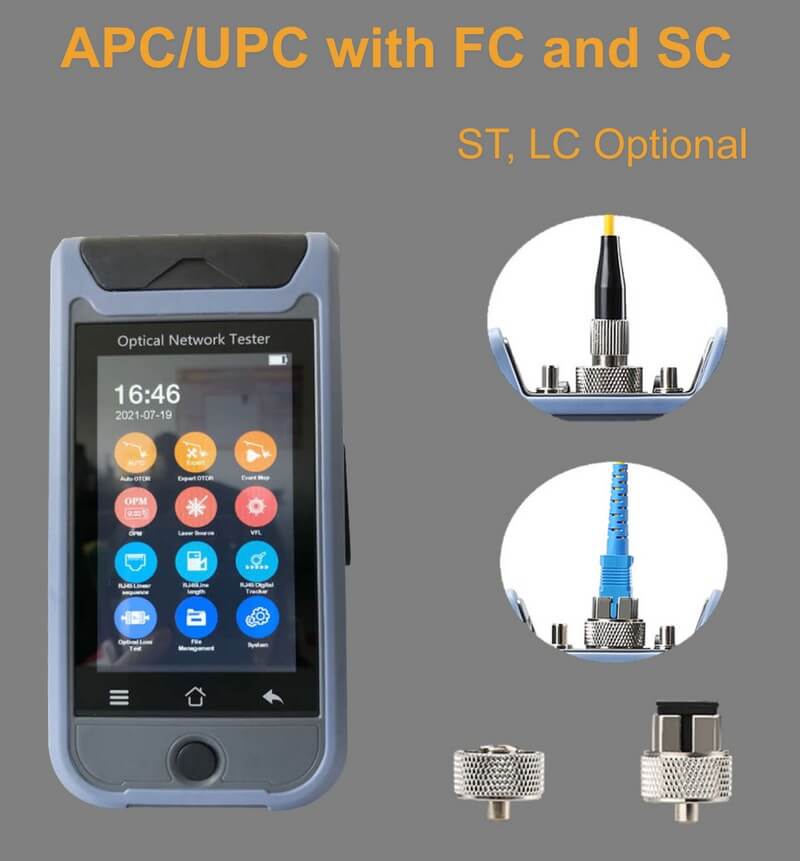

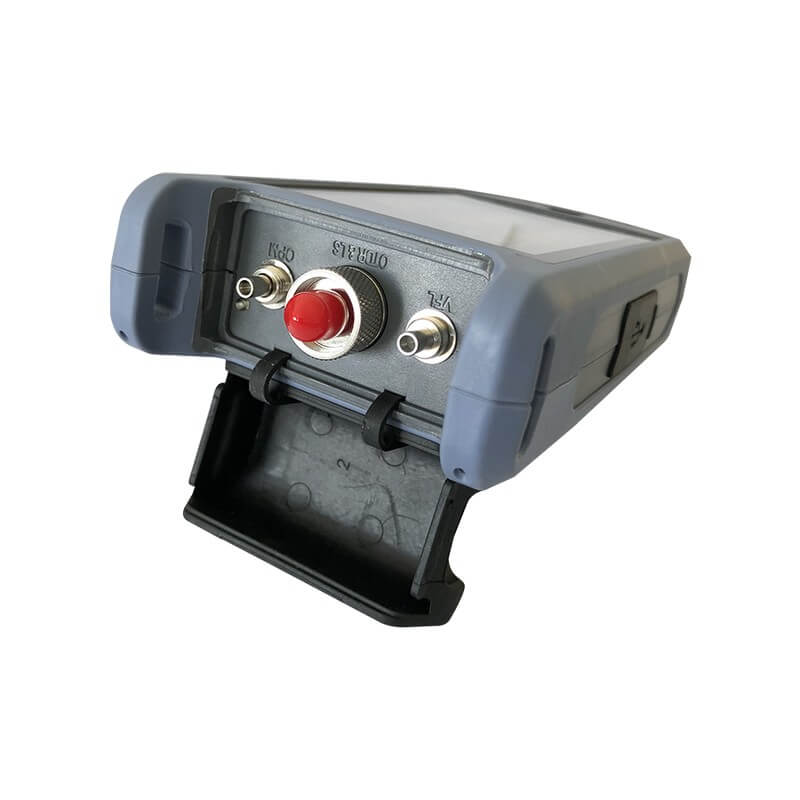

Connector FC/UPC (Interchangeable SC、ST) Or SC/APC
Refresh Rate 3Hz (Typ.)
Multitasking Support
OPM LS RJ45 Cable Length
Wave Range 800nm~1700nm Wavelength Same with OTDR Test Distance ≥300m
Test Range: -70~+10dBm/


Laser Type FP – LD Others
Power ≥-5dBm Display:4.3 inches 800×480 IPS TFT – LCD

Multi touch capacitive touch screen

Resolution 0.01dB Stability cw, ±0.5dB/15min             (After15min of preheating)
Uncertainty ±5% FC/UPC (Interchangeable SC,ST) Power supply: AC/DC adapter                         Input:100V~240V, 50/60Hz, 0.6A

Output: 5v 2A  Lithium battery:3.7V,4000mAh

Frequency identification CW/270/330/1k/2kH  (Use inner LS) Mode:              CW/270Hz/330Hz/1kHz/2kHz
Connector Universal FC/SC/ST Wave Recognition Support Battery Working Continuous test> 12h
Wave Recognition Support Optical Loss Test Data Storage 8GB, ≥20 thousand curves

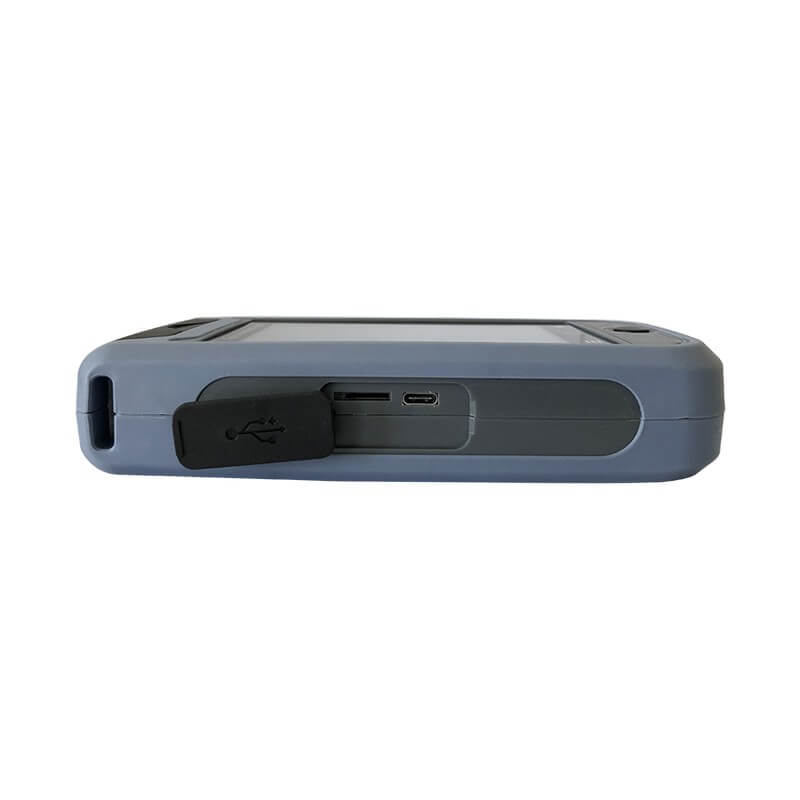

VFL Wavelength Same with LS Data Interface USB Type C
Wavelength 650nm±20nm IL Test Support Work Temperature -10°C~+50°C
Output Power ≥10mW RJ45 cable tracker Storage Temperature -40°C~+70°C
Mode CW/1Hz/2Hz Mode Digital tracking Relative Humidity 0〜95% Non Condensing
Connector FC/UPC    (Interchangeable SC ST) Distance ≥300m Weight ≤0.5kg
Safety Level Class III Support Online/ Line Pair Tracking Size 173mm × 109mm × 45mm
