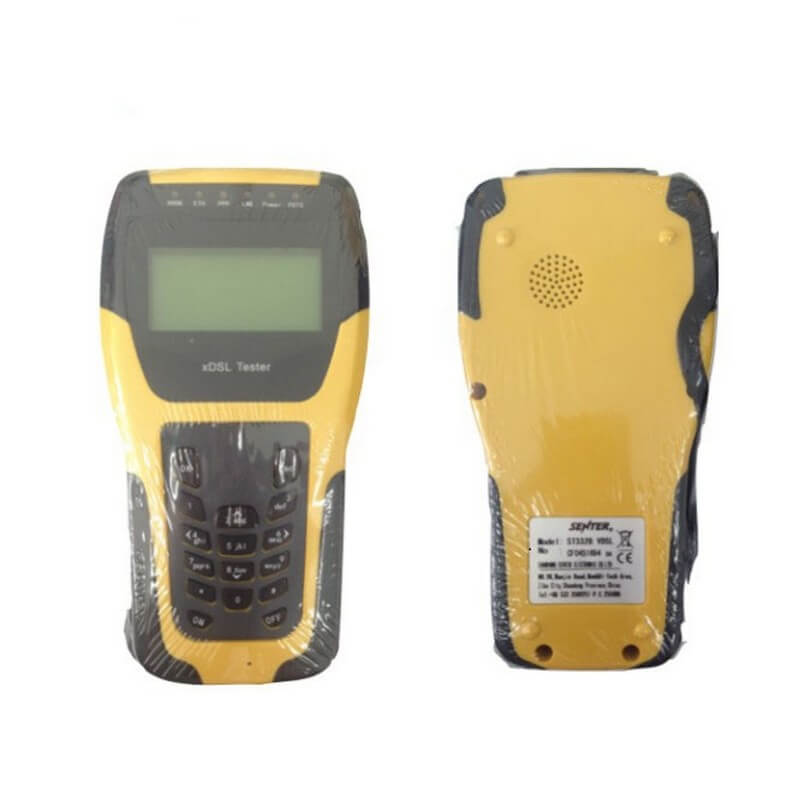

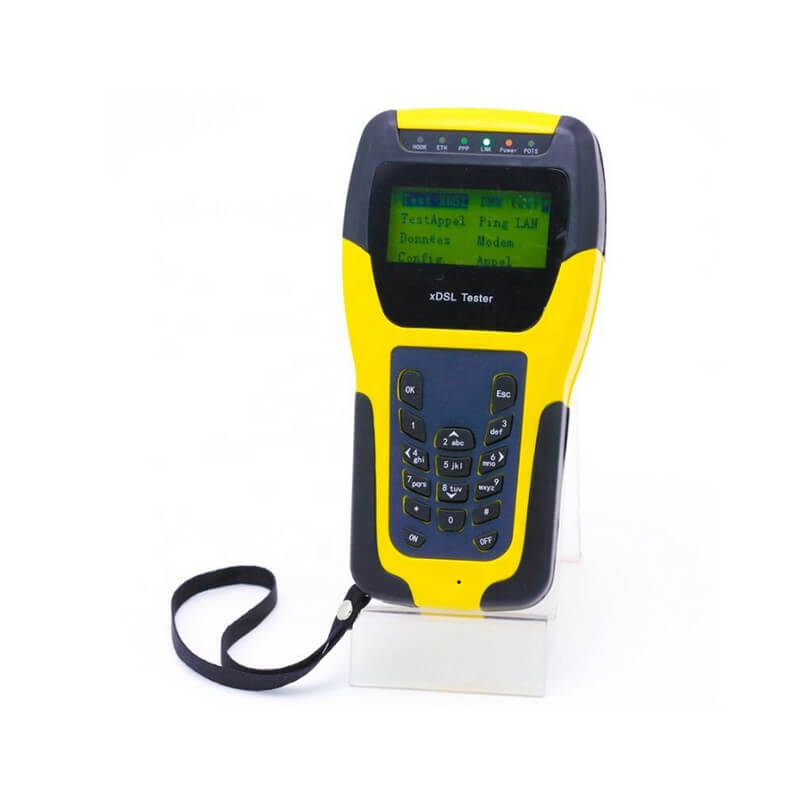

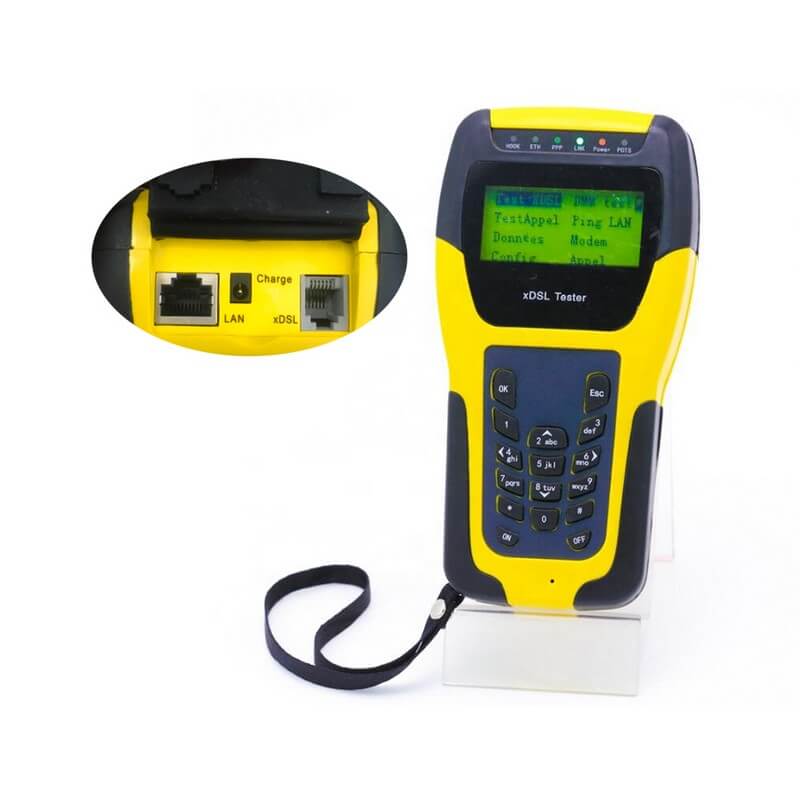

ST332B ADSL/VDSL Tester

ST332B VDSL tester is multi-functional hand-held VDSL2 test instrument with small size, specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. ST332B VDSL tester adopts LCD display and menu operation which can display the test results directly and improve the xDSL broadband service greatly. It’s the best choice for the field operators of installation and maintenance.

Product Features

Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
Supports Modem emulation and simulating login to Internet
Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
DSL Physical layer test
Modem Emulation (Replace the user Modem completely)
PPPoE Dialing (RFC1683,RFC2684,RFC2516)
PPPoA Dialing (RFC2364)
Telephone Function
DMM Test
Ping Function (WAN & LAN)
Data upload to computer and software management
Setup system parameter: backlight time, shut off automatically time without operation, press tone,
Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
Check dangerous voltage
Four grades service judge(Excellent, Good, Ok, Poor)

st332b adsl vdsl tester 6

Product Parameters

ADSL2+




Standards





ITU G.992.1(G.dmt),

ITU G.992.2(G.lite),

ITU G.994.1(G.hs),

ANSI T1.413 issue #2,

ITU G.992.5(ADSL2+)Annex L

Up channel rate 0~1.2Mbps
Down channel rate 0~24Mbps
Up/Down attenuation 0~63.5dB
Up/Down noise margin 0~32dB
Output power Available
Error test CRC, FEC, HEC, NCD, LOS
Display DSL connect mode Available
Display channel bit map Available
ADSL


Standards

ITU G.992.1 (G.dmt)

ITU G.992.2(G.lite)

ITU G.994.1(G.hs)

ANSI T1.413 Issue # 2

Up channel rate 0~1Mbps
Down channel rate 0~8Mbps
Up/Down attenuation 0~63.5dB
Up/Down noise margin 0~32dB
Output power Available
Error test CRC, FEC, HEC, NCD, LOS
Display DSL connect mode Available
Display channel bit map Available
VDSL2
Be compatible with ADSL2+, ADSL standard.
DSL line attenuation
DSL line noise margin
DSL line up/down channel speed (Inter/Fast mode)
DSL line up/down maximum rate
DMT sub channel bit number: 0~15, and each sub channel frequency points
DSL line error number (CRC, HEC, FEC, LCD, OCD)
DSL line local output power
DSLAM information
Error Code Second
Impulse Noise Protection (INP)
Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
DMM Test
DC voltage (V): 0~400
AC voltage (V): 0~400
Loop resistance(Ω): 0~20000
Capacitance (nF): 0~1000
Insulation resistance (MΩ): 0~50
General Specification
Power supply Internal Rechargeable 2800mAH Li-ion battery
Battery Duration 4 to 5 hours
Working temperature 0-40 oC
Working moisture 5%-90%
Dimensions 180mm×93mm×48mm
Weight: <0.5kg

st332b adsl vdsl tester 7

Application and After-Sales Service

Application:For for xDSL(ADSL/VDSL) operators of installation and maintenance
After-Sales Service:1 year warranty

st332b adsl vdsl tester 8
