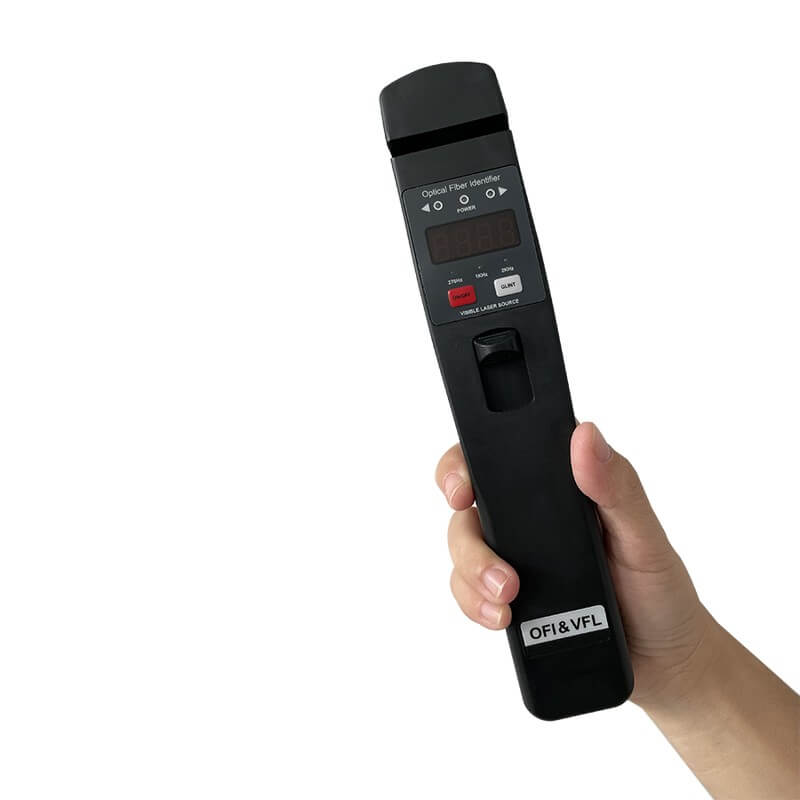

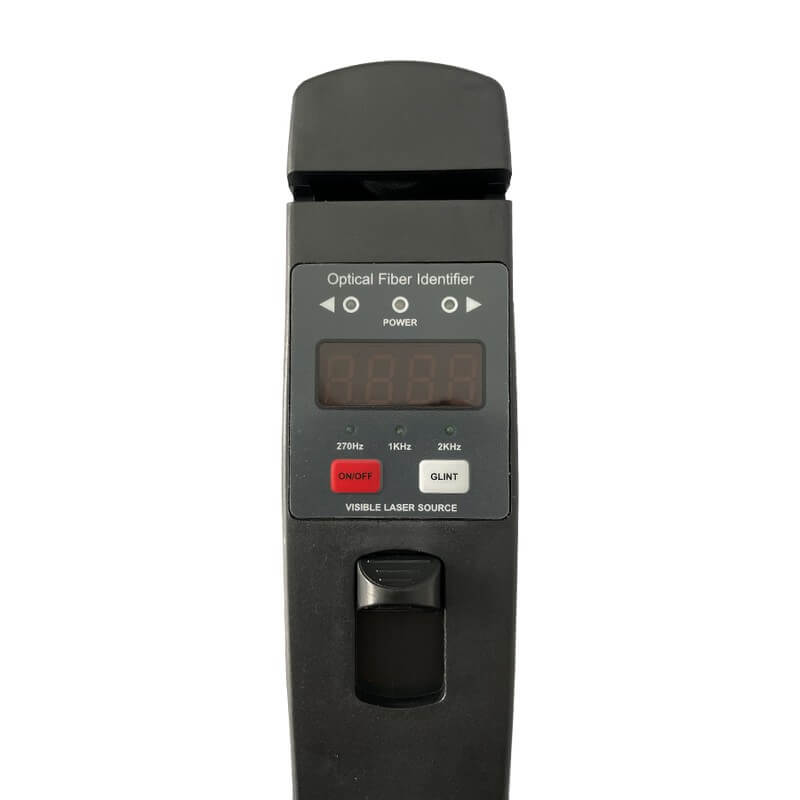

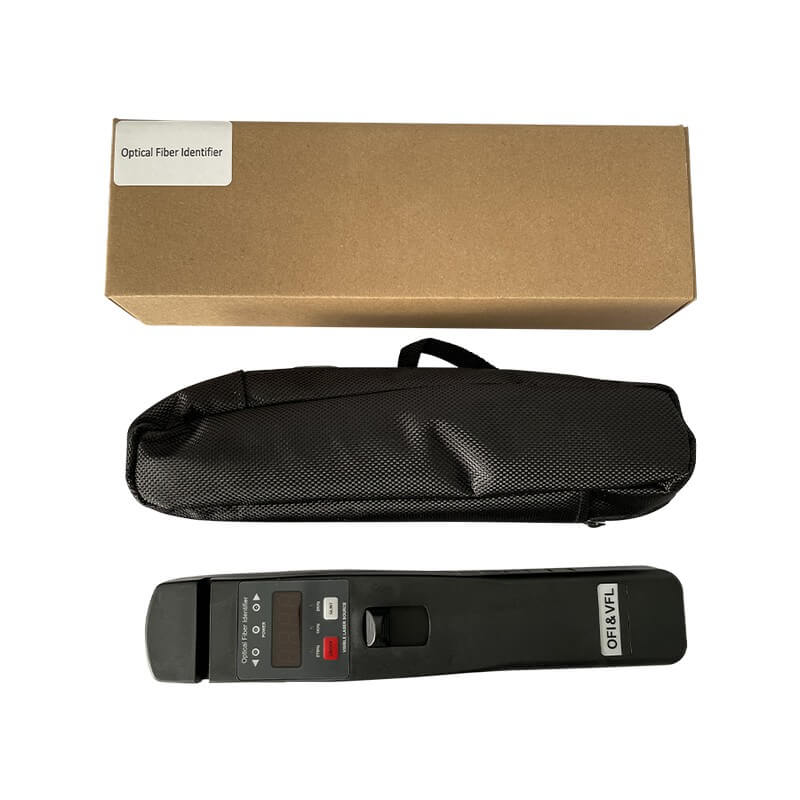

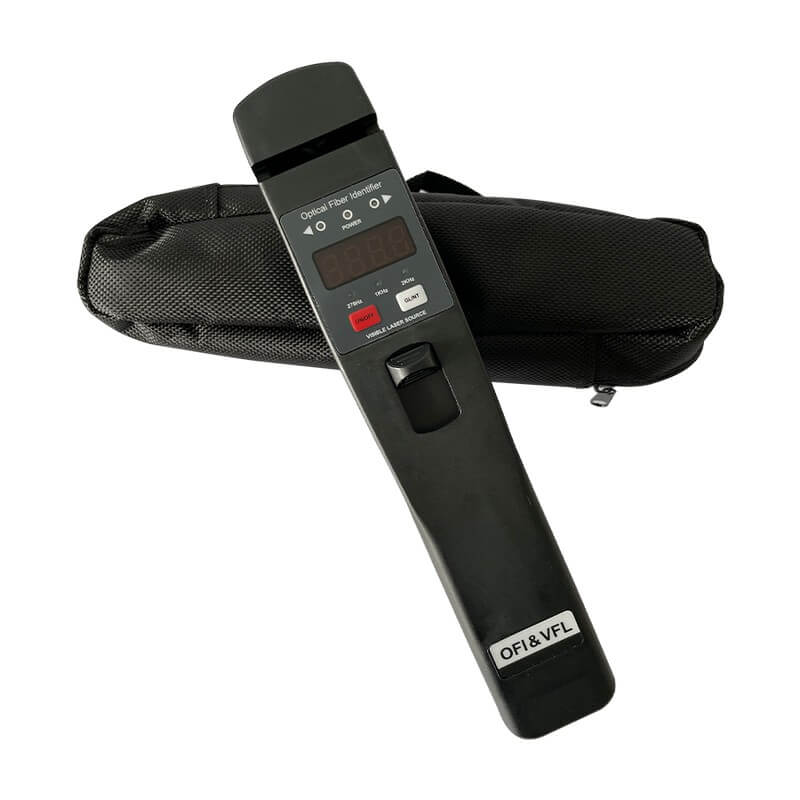

ST3820 Optical Fiber Ldentifier with VFL

ST3820 Optical Fiber Identifier is an important tool for optical fiber network maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber.
ST3820 combines the functions of optical fiber identifier and vfl. It can help operators fast find fiber in a mass, indicate signal directions in fiber, indicate Live or dark fiber, and detect 270Hz, 1kHz, 2kHz from laser source. The optical fiber identifier is powered by normal AA A batteries.

Product Features

1. Indicate the signal directions and power in fiber
2. Indicate the signal presence or absence(Live or dark fiber)
3. Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
4. Displays the relative core power
5. Don’t need to replace adaptor
6. Lower power indication
7. Build in 10MW VFL function

Product Parameters

Type ST3820
Identified Wavelength Range 750-1700 nm
Insertion Loss 1.0dB
Fiber Type < 3mm Fiber
Identified Signal Type 270Hz/1KHz/2KHz
Display Type LED
Detector Type 1mm InGaAs
Minimum detection power -35dBm(1550nm)
Center Wavelength 650nm
Output Power  10mW
Alkaline Battery 2*AA
Battery Life > 60H
Operating Temperature 0~+50℃
Storage Temperature -20~+60℃
Weight 200g
Dimension 230*43*48mm

Application and After-Sales Service

For optical fiber installation and maintenance
1 year warranty
