Product Features

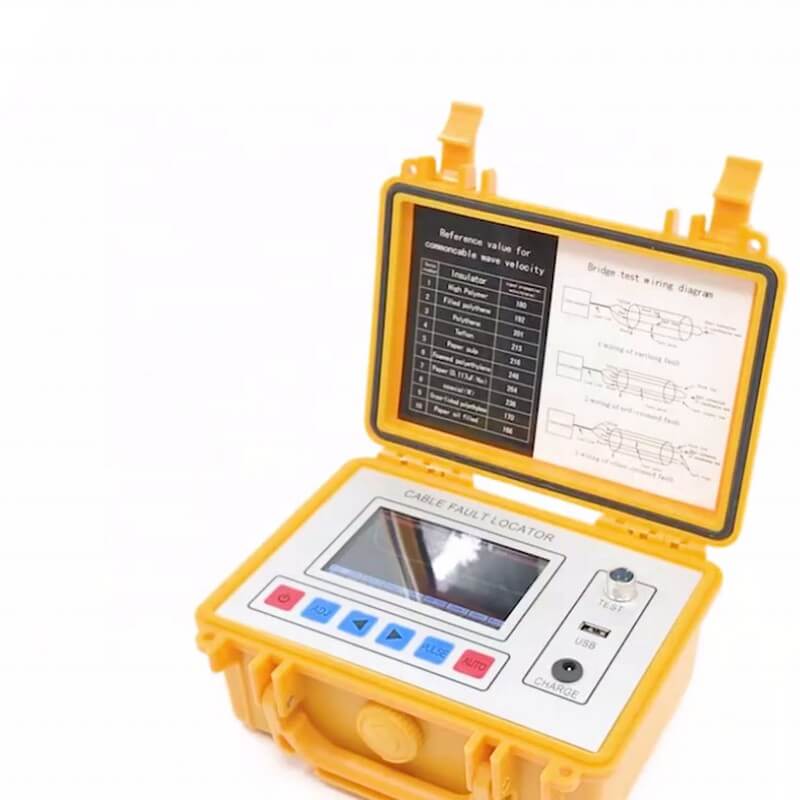

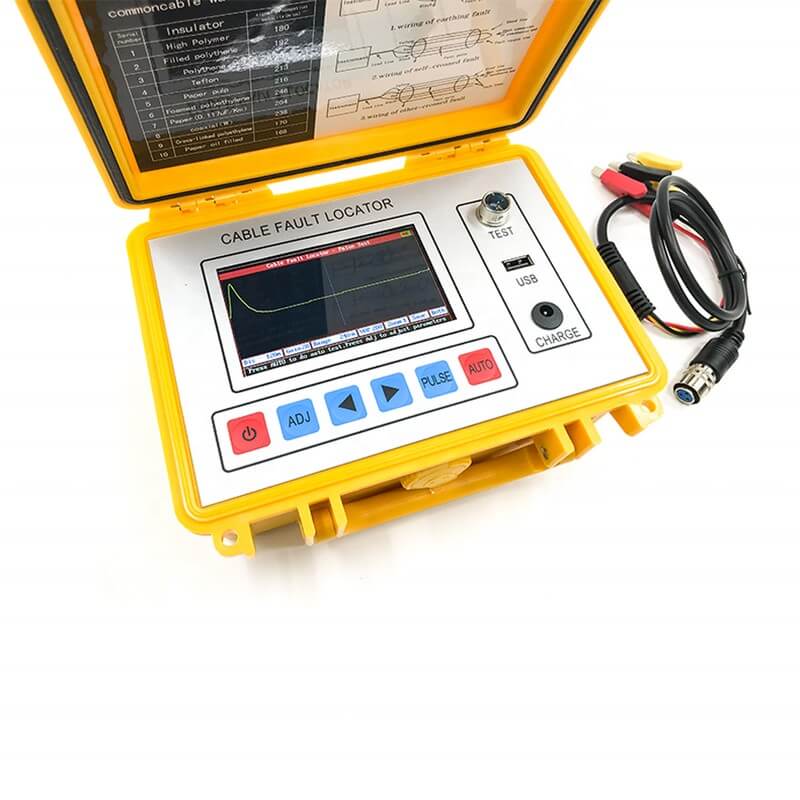

Large color LCD Display (480 x 280 dot); humanized operation interface; six function keys and simple operation.
Both pulse reflection testing (TDR) and intelligent bridge testing (Bridge) can test broken lines, crossing lines, poor insulation and other types of faults.
Manual testing function is preserved.
Full English Menu is easy to master and use.
With megameter and ohmmeter, it enables to test insulation resistance and loop resistance.
With USB Port, it is easy to upload testing data to U-disk and you can analyze the data on computer.
Rechargeable lithium battery, intelligent charging without duty.
Small dimension, light weight and portable design.

Product Parameters

Pulse reflection testing(TDR)
Max range: 8 km
Dead Zone: 0 m
Testing Accuracy: 1m
Pulse width: 40ns-10μs with automatic adjustment
Automatic impedance balance adjustment
Automatic and manual gain adjustment
Intelligent bridge testing(Bridge)
Max poor insulation resistance: 100 MΩ.
Testing accuracy: ±1%×cable length
The max length of testing cable: 9999m
Charging time: 4 hours
Continued operating time: 8 hours
Dimension: 220×160×90 (mm3)
Weight: 1Kg

Application and After-Sales Service

Application: Used for measuring the exact fault location such as the broken line, cross faults, earthing, poor insulation and poor contact of the lead covered cables as well as plastic cables.
2. After-Sales Service: 1year warranty
