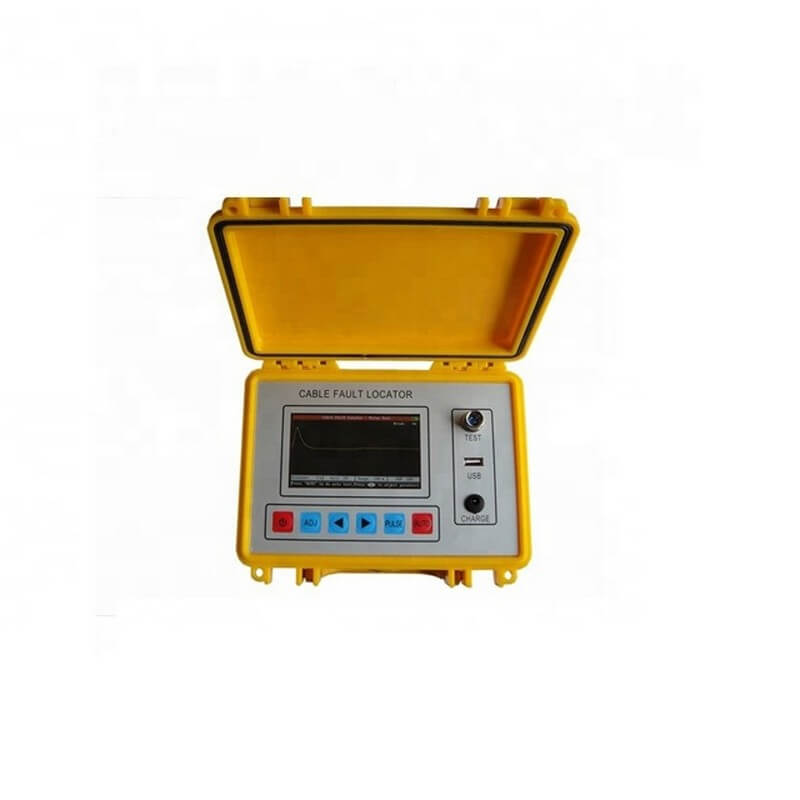

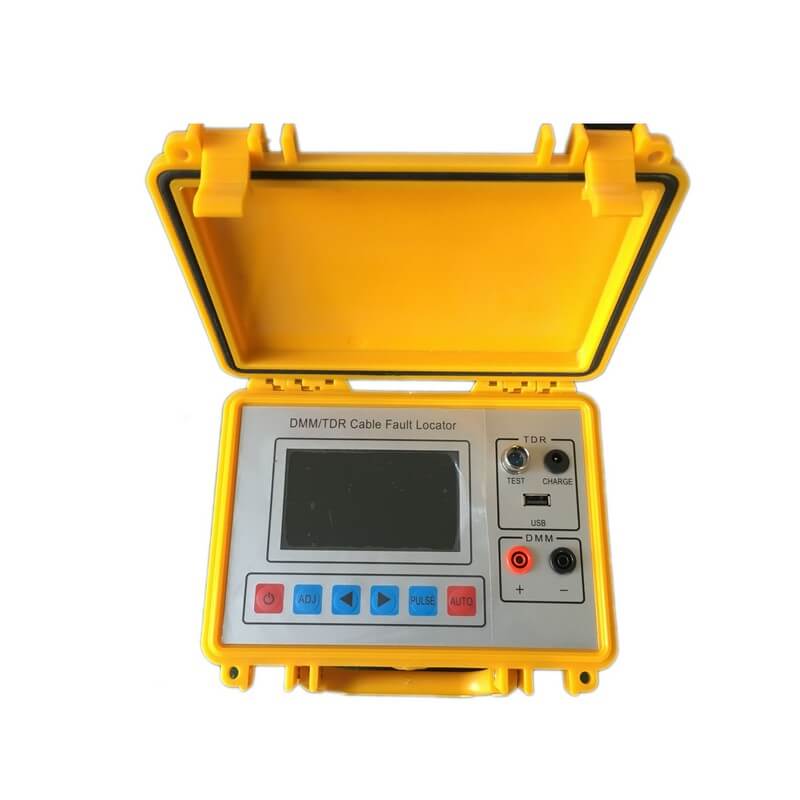

Product Features

1. Large color LCD Display (480 x 280 dot); humanized operation interface; six function keys and simple operation.
2. Combine with pulse reflection testing (TDR) and Digital Multimeter(DMM), can test broken lines, crossing lines, poor insulation and other types of faults.
3. Manual testing function is preserved.
4. Full English Menu is easy to master and use.
5. With megameter and ohmmeter, it enables to test insulation resistance and loop resistance.
6. With USB Port, it is easy to upload testing data to computer(This function is optional)
7. Rechargeable lithium battery, intelligent charging without duty.
8. Small dimension, light weight and portable design.

Product Parameters

1. Pulse reflection testing(TDR)
Max range: 8km (16kms, and 32kms are optional)
Dead Zone: 0 m
Testing Accuracy: 1m
Pulse width: 40ns-10μs with automatic adjustment
Automatic impedance balance adjustment
Automatic and manual gain adjustment

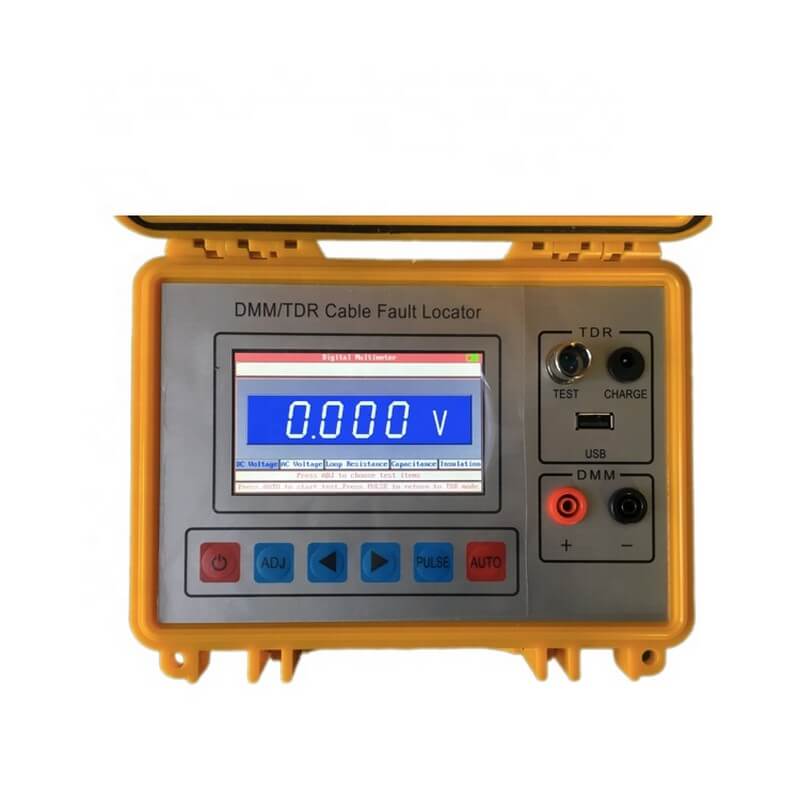

2. Digital Multimeter(DMM)
DC voltage: -400V~ 400V, resolution can reach 0.001V
AC voltage: 0V~290V
Capacitance: 0nF~1000nF
Accuracy: 0–10nF: ±2nF; 10nF–1000nF: ±2% +±2 nF
Loop resistance: 0Ω~20kΩ
Accuracy: 0–100: ± 3% +± 4Ω 100- 500: ±3%; 500-20 KΩ ±2%
Insulation resistance between line: 0M Ω -30M M Ω.
Accuracy: 0–1.0M: ±0.1M Ω 1.0M – 30M: ±10% + 0.5 MΩ.
The charging time of about 3.5 hours
Full – after 8 hours of continuous operating time
Size: 210mm * 166mm * 90mm
Weight: 1Kg

Application and After-Sales Service

Application: Used for the measuring of exact fault location such as the broken line, cross faults, earthing, poor insulation and poor contact of the lead covered cables as well as plastic cables
After-Sales Service: 1 year warranty
