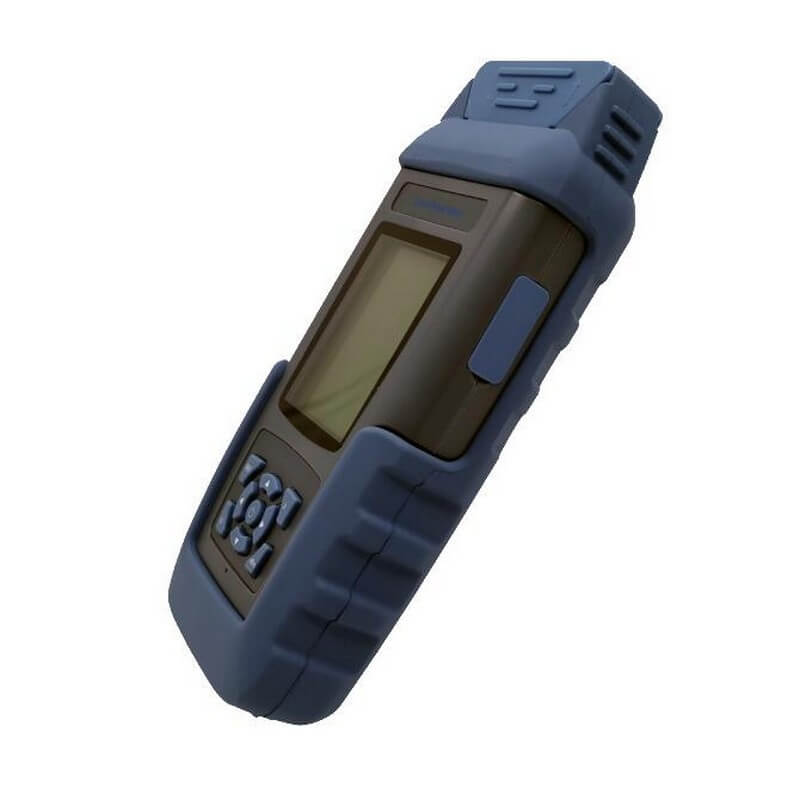

ST800K-U Series Optical Power Meter with VFL

With a wide range of functions, ST800K-U optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications. ST800K-U Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power. This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.

Product Features

1. Multi-wavelength precise measurement
2. Absolute power measurement of dBm or µw
3. Relative power measurement of dB
4. Auto off function
5. 270, 330, 1K, 2KHz frequency light identification and indication
6. Low voltage indication
7. Automatic wavelength identification (with the help of light source)
8. Store 1000 groups of data
9. Upload test result by USB port
10. Real-time clock display

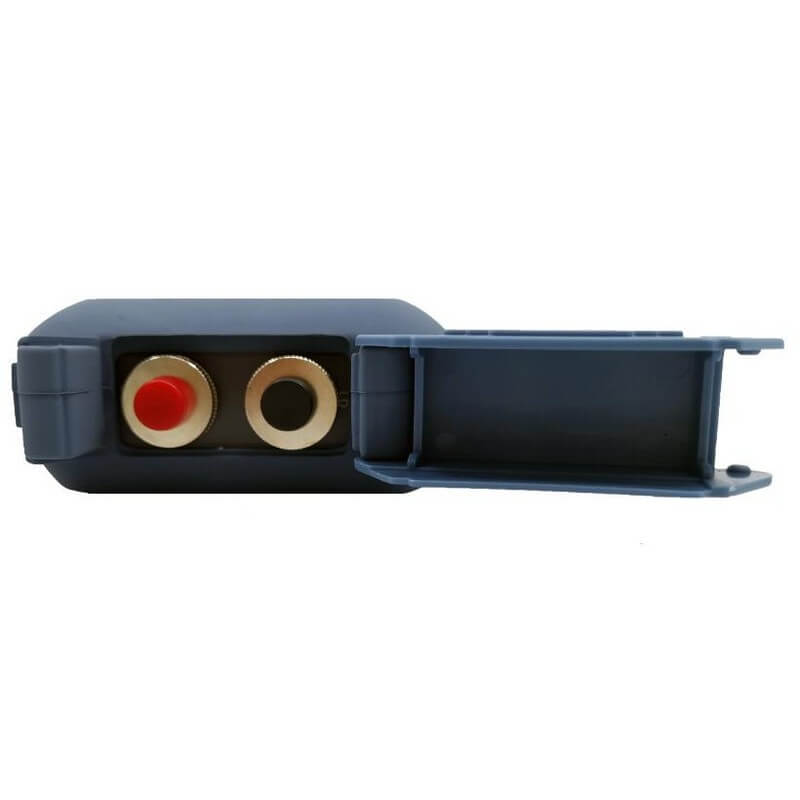

11. Output 650nm VFL

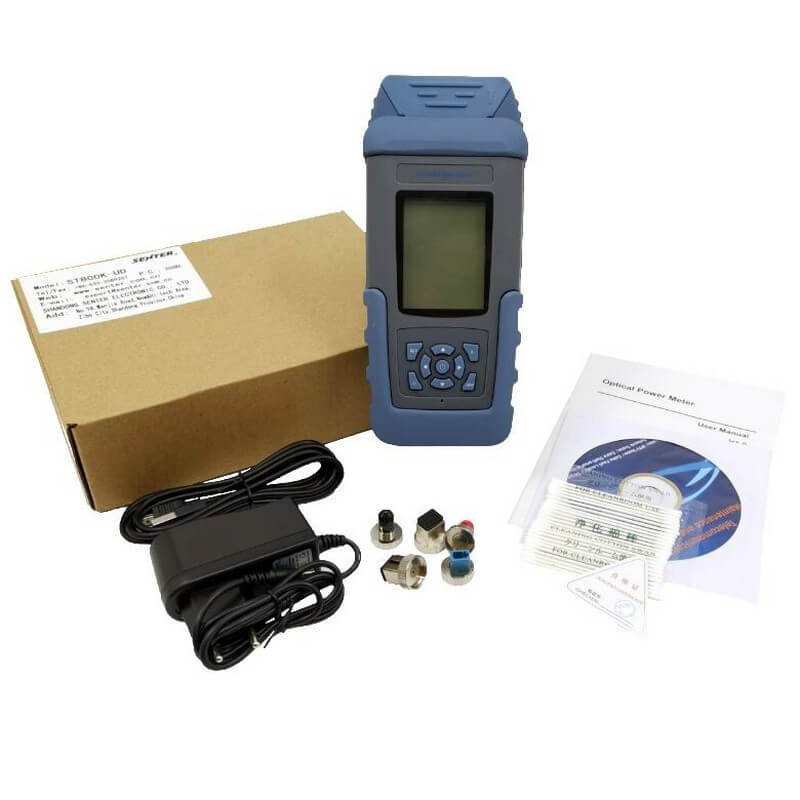

12. Applicable to versatile adapters (FC, ST, SC, LC)

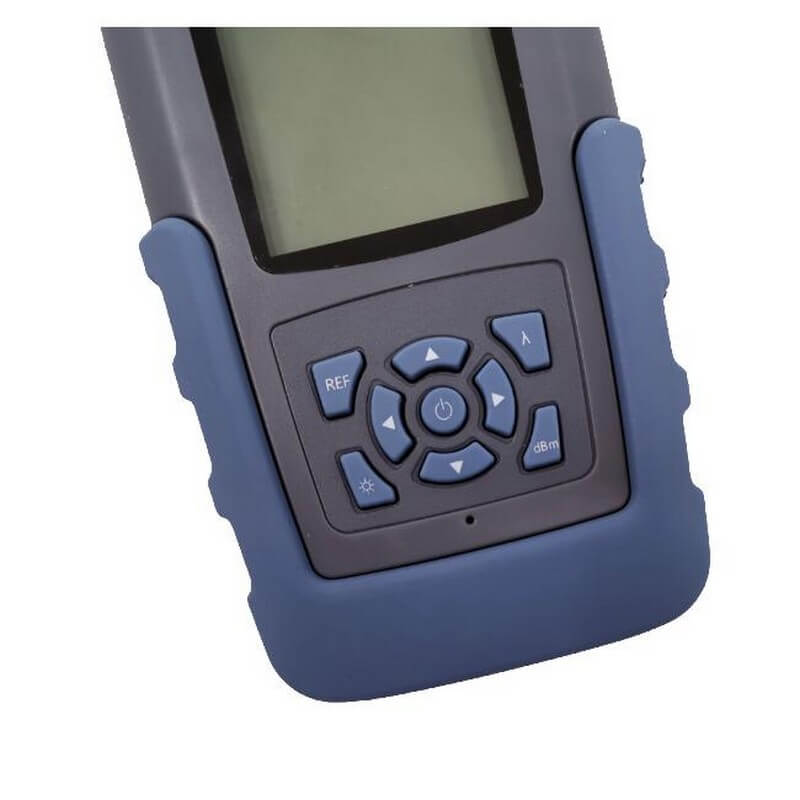

13. Handheld, large LCD backlight display, easy-to-use

Product Parameters

Wavelength range (nm) 800~1700
Detector type InGaAs
Standard wavelength(nm) 850, 1300, 1310, 1490, 1550, 1625
Power testing range (dBm) -50~+26 or -70~+10
Uncertainty ±5%
Resolution Linearity: 0.1%, Logarithm: 0.01dBm
Storage Capacity 1000 groups
General specifications
Connectors FC, ST, SC, LC
Working temperature (℃) -10~+50
Storage temperature (℃) -30~+60
Weight (g) 430 (without batteries)
Dimension (mm) 200×90×43
Battery 4 pcs AA batteries Or lithium battery
Battery working duration(h) No less than 75 (according to battery


Auto power off time (min) 10
Model No. Power test range


Adapter interface Battery Marks
ST800K-UA -50~+26 FC,ST,SC Rechargeable If you need
Li-ion battery Dry AA
ST800K-UB -50~+26 FC,ST,SC,LC Rechargeable battery,
Li inform us in
ST800K-UC -70~+10 FC,ST,SC Rechargeable advance.
ST800K-UD -70~+10 FC,ST,SC,LC Rechargeable

Application and After-Sales Service

Fiber-optic installation and maintenance
1 year warranty
