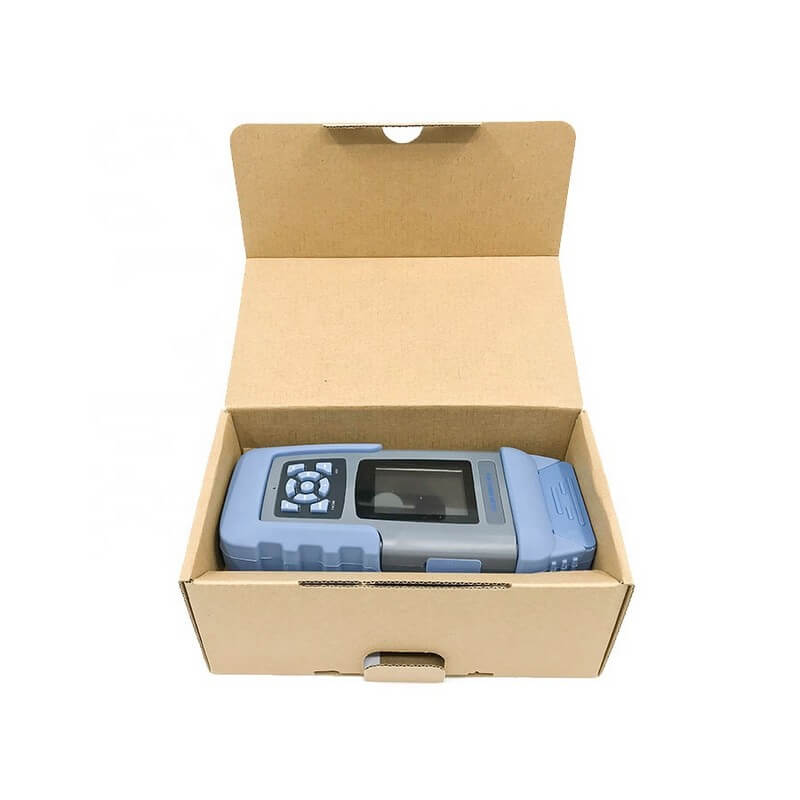

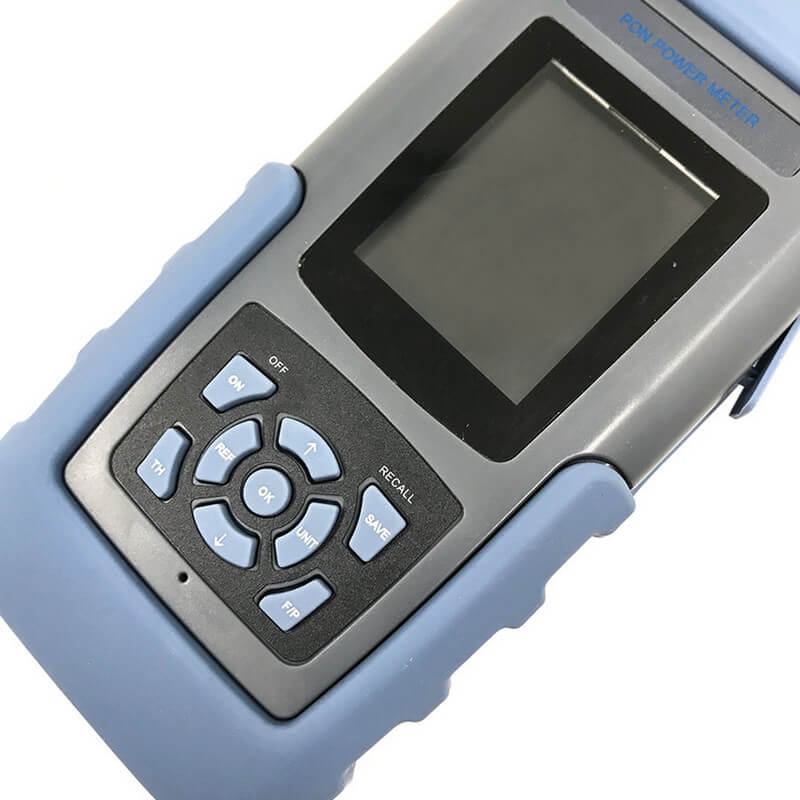

ST805C-X Pon Power Meter

ST805C-X PON Power Meter is specifically designed for the PON network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of PON network of FTTX. ST805C-X PON Power Meter can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength.

Product Features

3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
Threshold value setting function
Auto backlight off function
Display the voltage of battery
Power off automatically when it is in low voltage
Data Storage 1000 groups

Product Parameters

Standard wavelengths 1310 (upstream) 1490 (downstream) 1550 (downstream)
Pass zone(nm) 1260~1360 1480~1500 1530~1570
Range(dBm) -40~+10 -50~+10 -50~+25
Max. permitted input power 15dBm 15dBm 25dBm
Isolation @1310nm(dB) >40 >40
Isolation @1490nm(dB) >40 >40
Isolation @1550nm(dB) >40 >40
Accurate of burst signal Deviation <±0.5dB@-10dBm
Other Parameters
Optical fiber type SM 9/25um

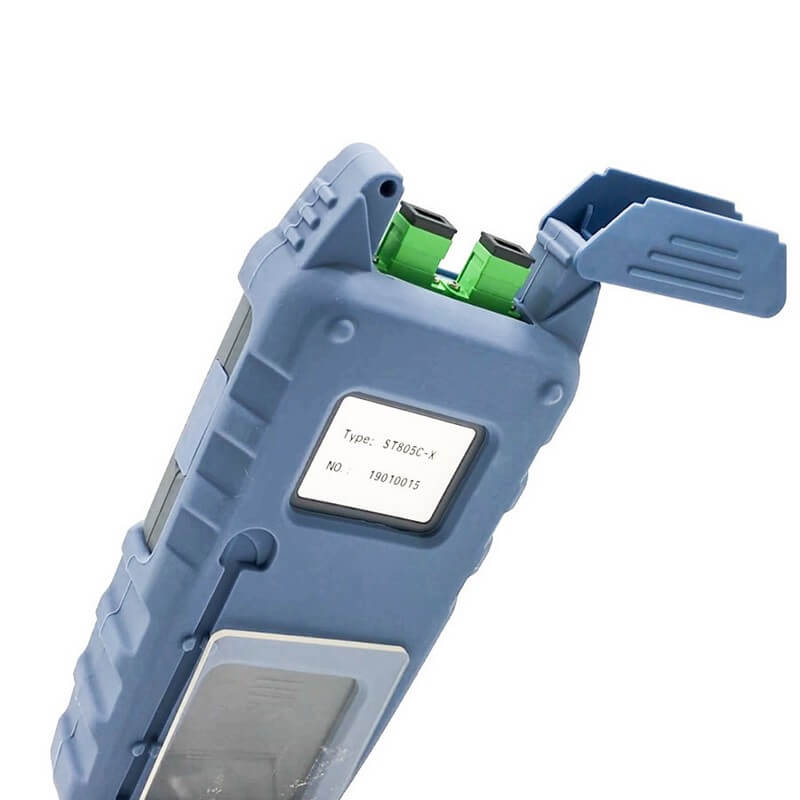

Optical fiber connector SC/APC
Accurate ±0.2dB/±0.5dB(burst mode)
Linearity(dB) 0.1
Through Insertion Loss(dB) <1.5
Resolution 0.01dB
Unit dBm / xW
General Specifications
Storage number 1000 items
Auto power off time Included

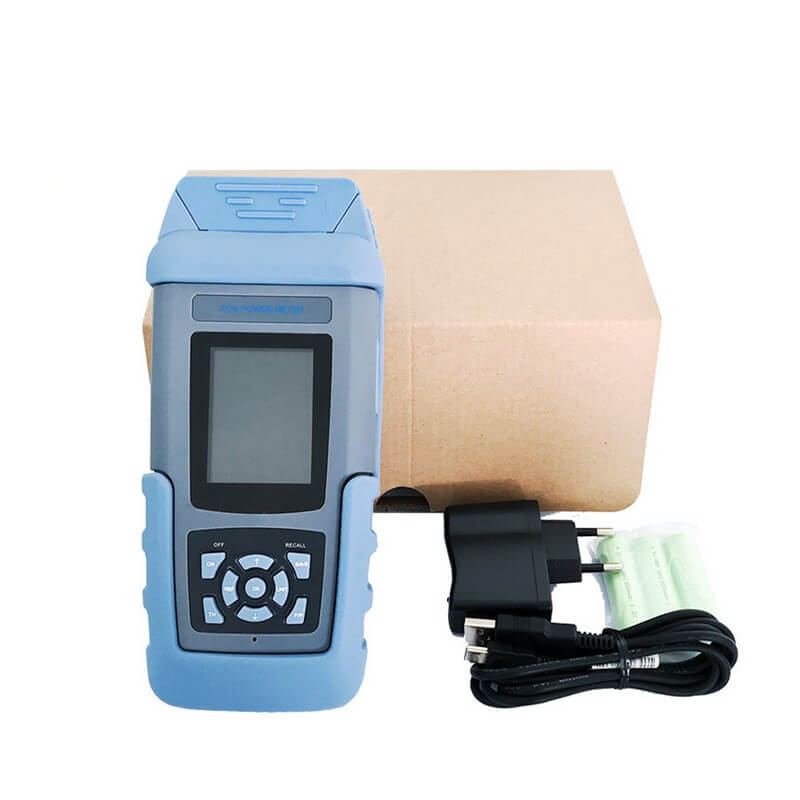

Battery AA x 3 or AC/DC adapter
Working temperature -10~60℃
Storage Temperature -20~70℃
Dimension (mm) 42mm*90mm*195mm
Weight (g) About 350

Application and After-Sales Service

PON network construction and maintenance
1 year warranty
