STS823A Optical Fiber Cleaning Tool Kit

This product is a portable, video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.


Convenient using both for male and female adapters;
Widely used in DWDM, SDH, SONET etc.
Magnification: 250* via 3.5’’ 220,000 pixels TFT LCD;
Available for USB 2.0 interface on PC and data saving

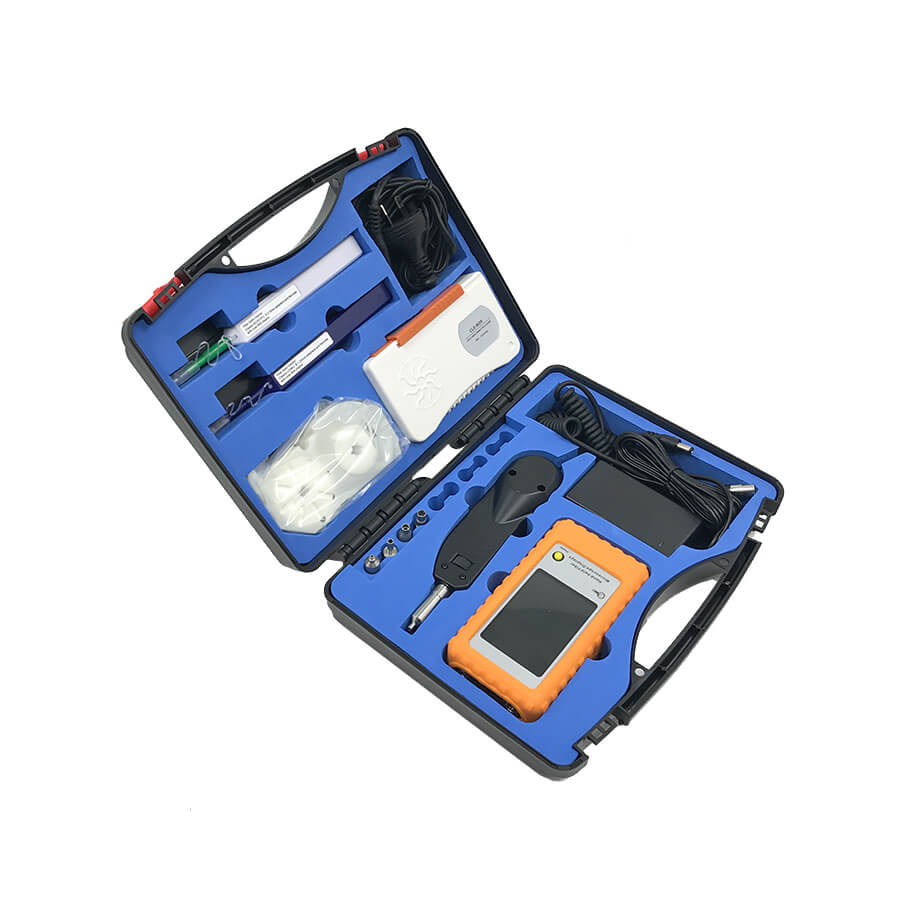

Standard Accessories
Inspection Probe x1
3.5’’ monitor x1
25-U-M x1
125-U-M x1
25-U-F x1
LC-U-F x1
Recharger; Manual;
Carrying bag; Li Battery
Optional Accessories
1.25mm, 2.5mm one click cleaner
connector cleaning cassettes and replacement reel
AV-USB 2.0 Converter;

Magnification 400x (9’’ Monitor) 250x (3.5’’ Monitor)
Resolution Ratio 0.5 um
Display Screen 3.5’’ TFT-LCD, 960×240 pixels
Video Output NTSC / PAL
Power Supply 3.7V 4500mA / 5V 1A Li Battery
Weight 1.5kg
Work/Storage -20℃~+50℃ -30℃~+60℃
Tips Type Function Description
25-U-M FC/SC/ST/E2000 patch cord UPC connector
125-U-M LC/MU patch cord UPC termination
25-A-M FC/SC/ST/E2000 patch cord APC connector
125-A-M LC/MU patch cord APC termination
25-U-F FC/SC/ST/E2000 UPC bulkhead
LC-U-F LC UPC bulkhead
SC-A-F SC APC bulkhead
FC-A-F FC APC bulkhead
LC-A-F LC APC bulkhead

Application and After-Sales Service

Application: For optical fiber cleaning
After-Sales Service: 1 year
