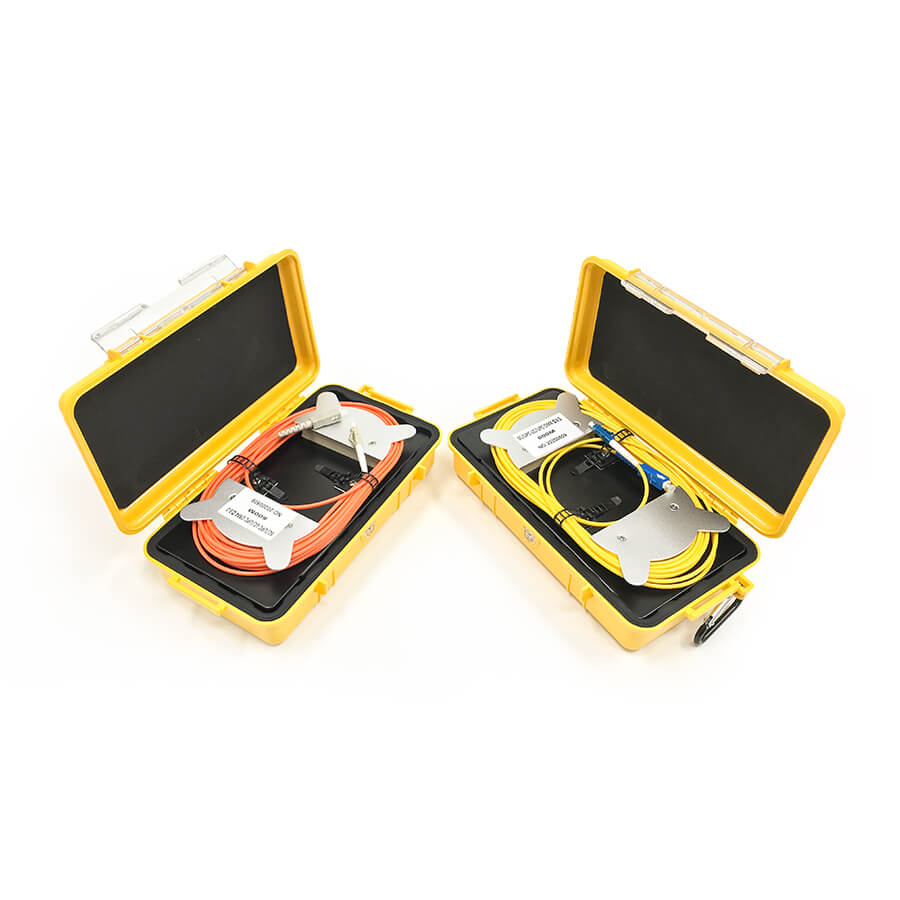

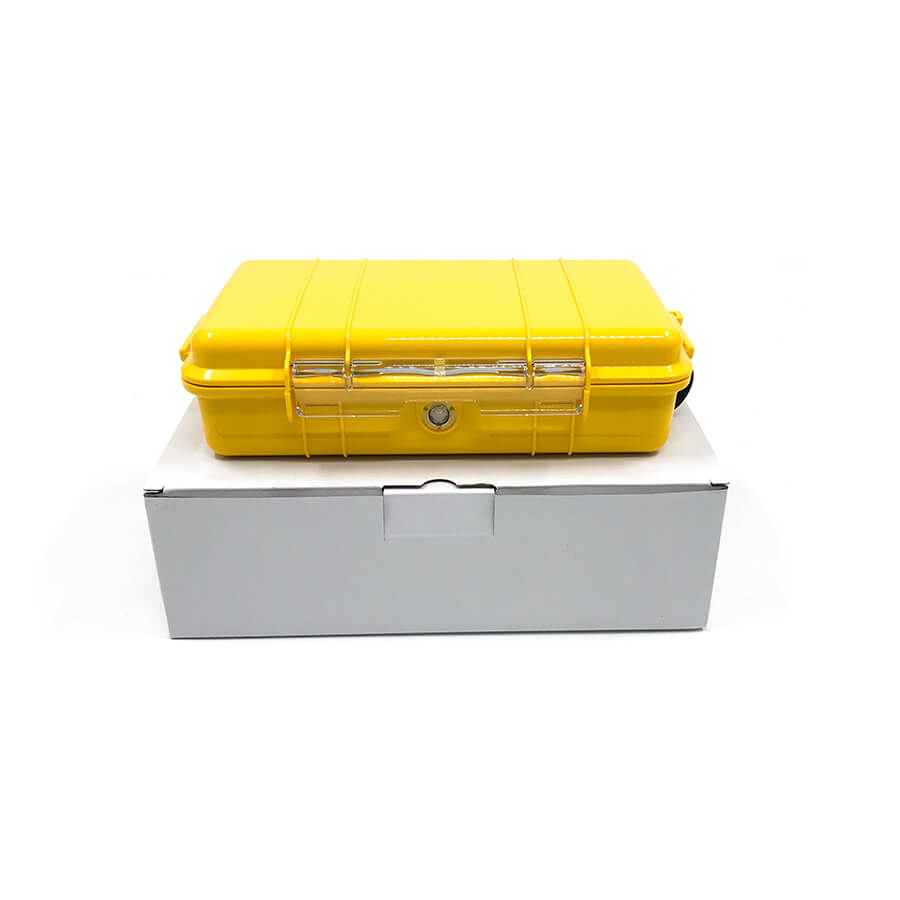

STS826 OTDR Launch Cable Box

STS826 OTDR Launch Fiber box is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s) to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty. It is available in many different configurations and fiber lengths. STS826 OTDR Launch Cable Box mainly used to fill the blind area of the OTDR test. The OTDR Launch Fiber Box is used with optical time domain reflectometers (OTDR) to help minimize the effects of the otdr launch pulse on the measurement urgency.

Product Details

Designed to aid in the testing of fiber optic cable when using an OTDR. Available in many different configurations and fiber lengths.

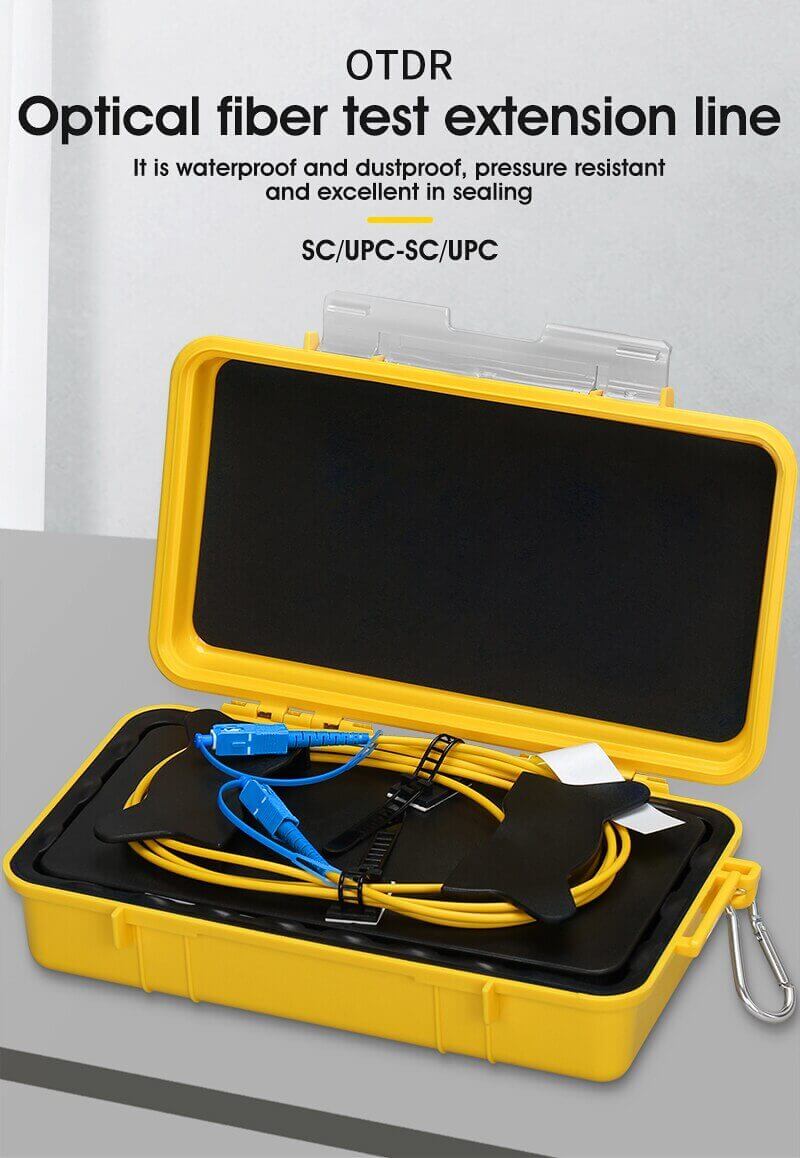

sts826 otdr launch cable box 6

A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber. This help to avoid variations in loss and distance measurements when testing. We offer 500m,1Km ,2Km or customized length as per customers requirements.

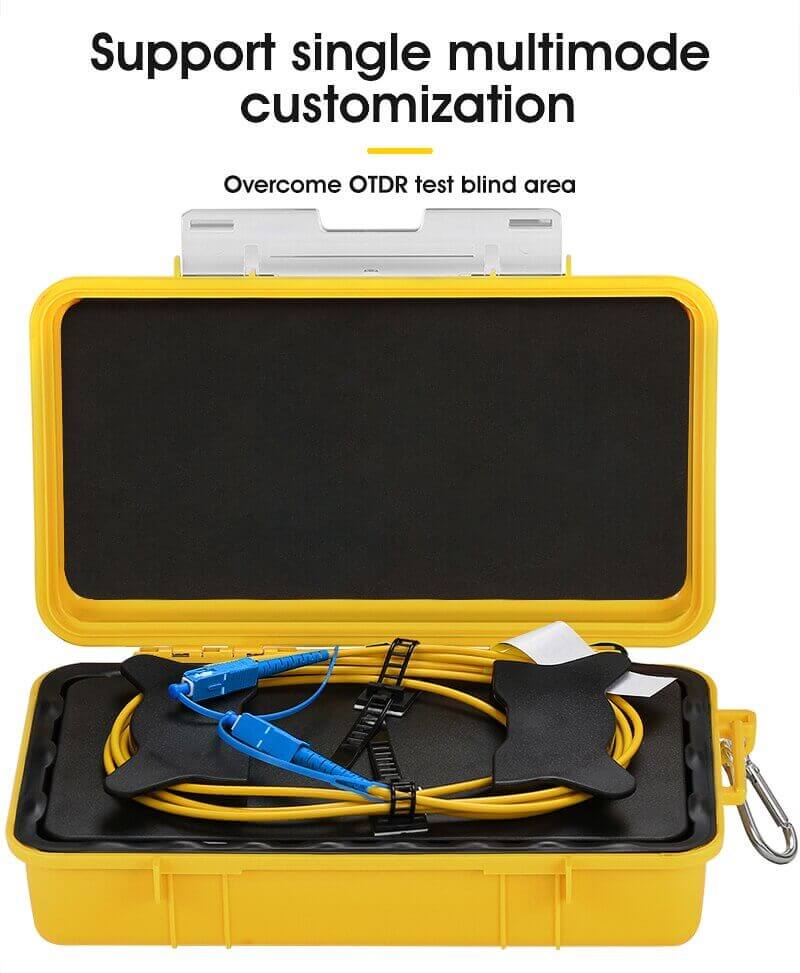

sts826 otdr launch cable box 7

Product Features

Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature
Non­metal construction will not dent, corrode, or conduce electricity
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature

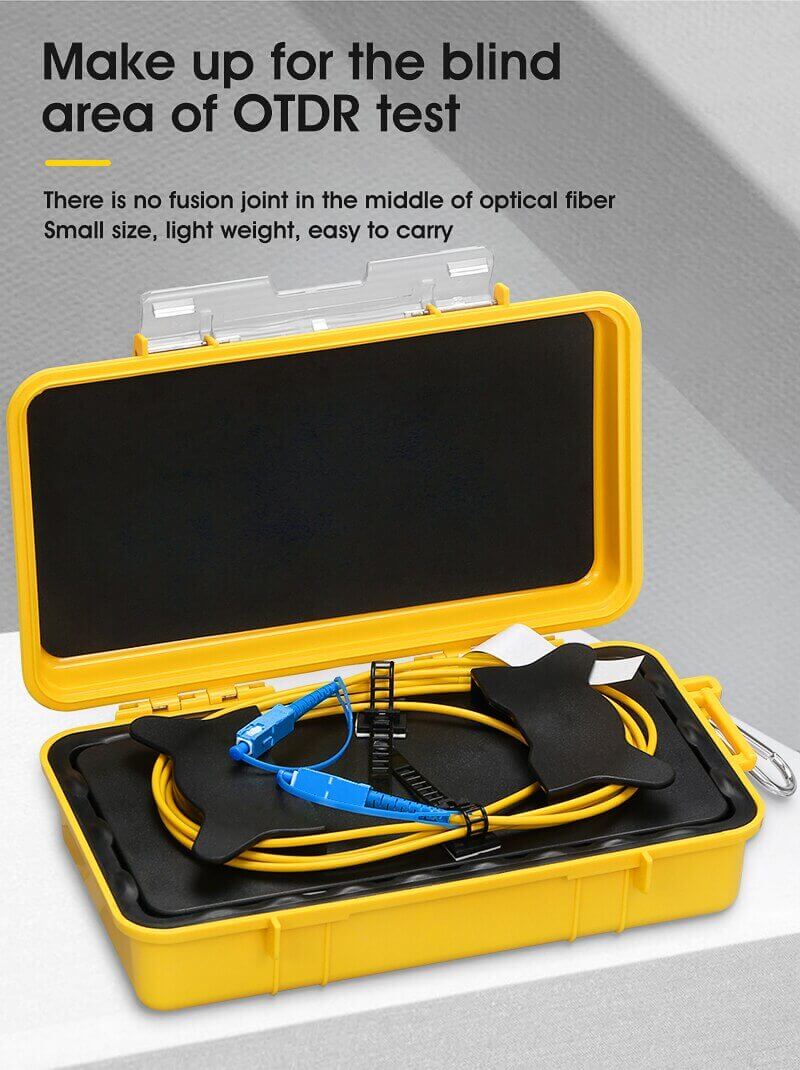

sts826 otdr launch cable box 8

Product Parameters

Length x Width x Height 9.37″ x 5.56″ x 2.62″
Material SR Polypropylene
Color Black/Yellow
Weight 0.75 kg (without fiber)
Operating temperature -40° to +55°C
Typical Loss < 0.5dB @ 1310nm for 1000 meters

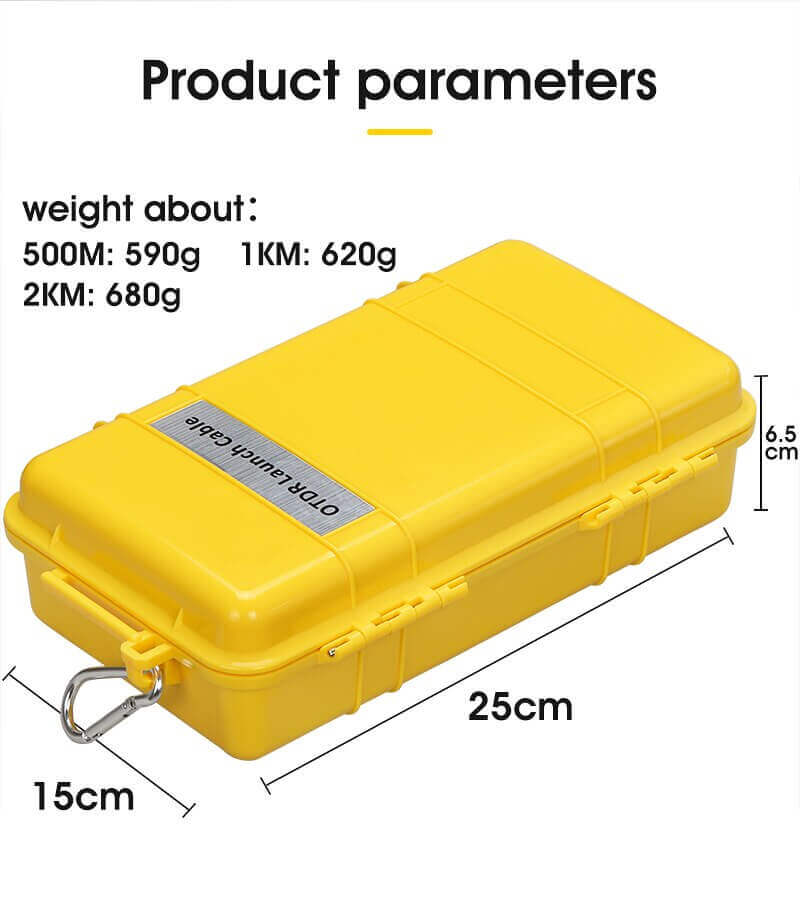

sts826 otdr launch cable box 9

Application and After-Sales Service

Application: The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR’s) to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty
After- sales service: 1 year warranty

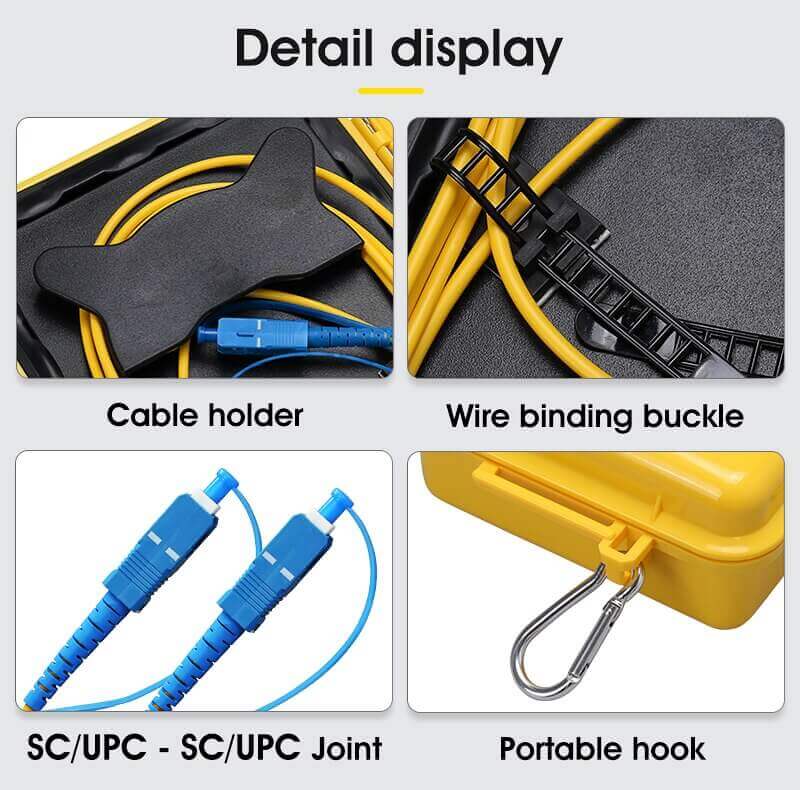

sts826 otdr launch cable box 10

sts826 otdr launch cable box 12

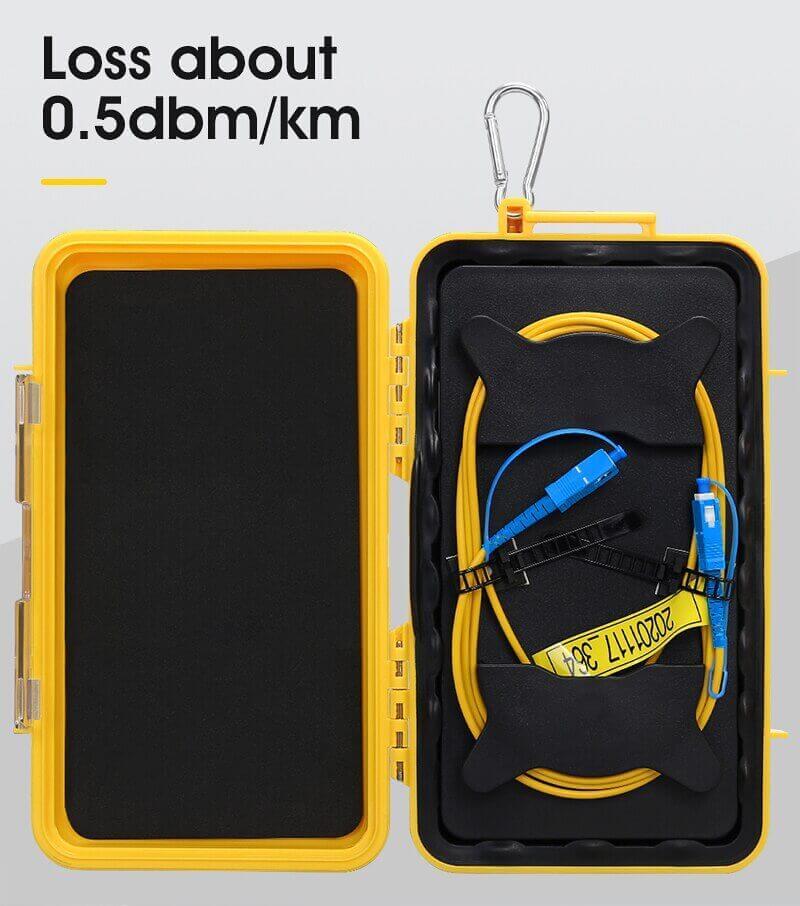

sts826 otdr launch cable box 11
