Use professional “Corning Fiber”
Specially processed connector
Can test with the cover closed
Auto Purge Valve for changes in altitude and temperature
Nonmetal construction will not dent, corrode, or conduce electricity
Compound latch for positive seal and easy opening with locking feature
Water and dust prove allowing the unit to be taken into almost any environment
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Each product passes the OTDR calibration test before factory; loss value is less than 0.5dB/km.
500M/1KM Fiber length, SM/MM fiber type, connectors are offered according to your request.
| Length | 500M | 1000M |
| Dimension | 210mm*110mm*57mm | |
| Weight | 0.8kg | |
| Case Material | SR Polypropylene | |
|
Fiber Type |
Single Mode Fiber 9/125μm(G.652D/G.657A) | |
| Multi Mode Fiber 62.5/125μm (OM1) | ||
| Multi Mode Fiber 50/125μm (OM2) | ||
|
Connector Type |
SC/UPC, ST/UPC, FC/UPC, LC/UPC, SC/APC, ST/APC,
FC/APC, LC/APC E2000/UPC, E2000/APC (choose at will) |
|
| Typical Loss | <0.5dB/1km | |
| Operating Temperature | -40℃ ~ +55℃ | |

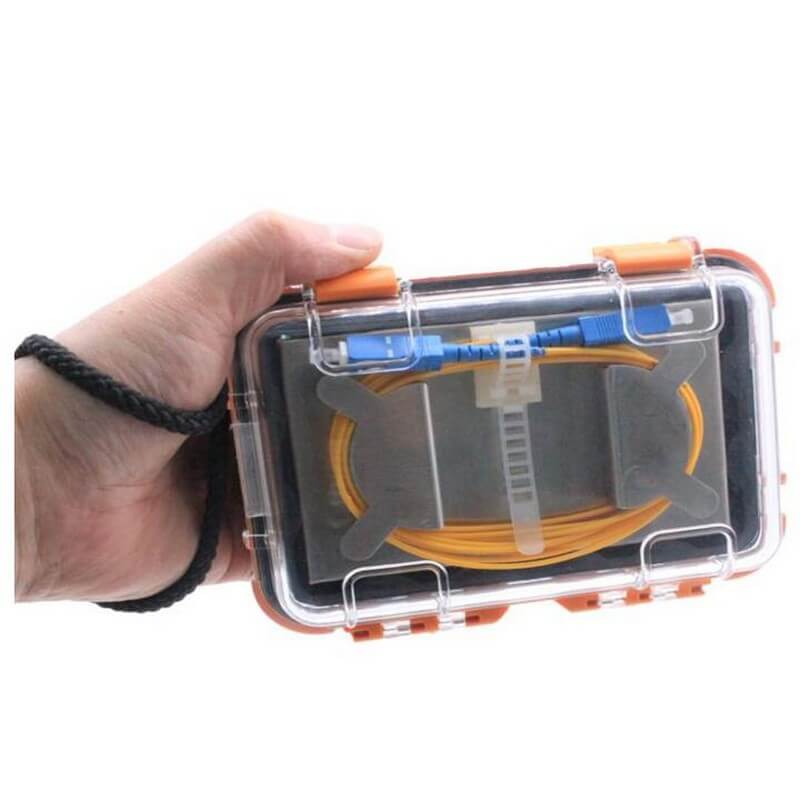

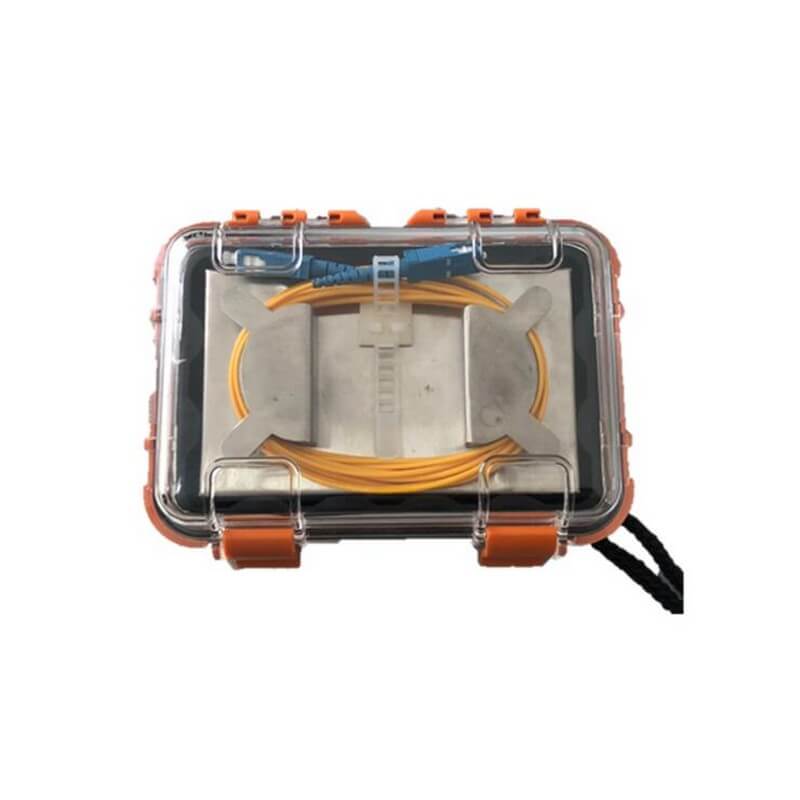

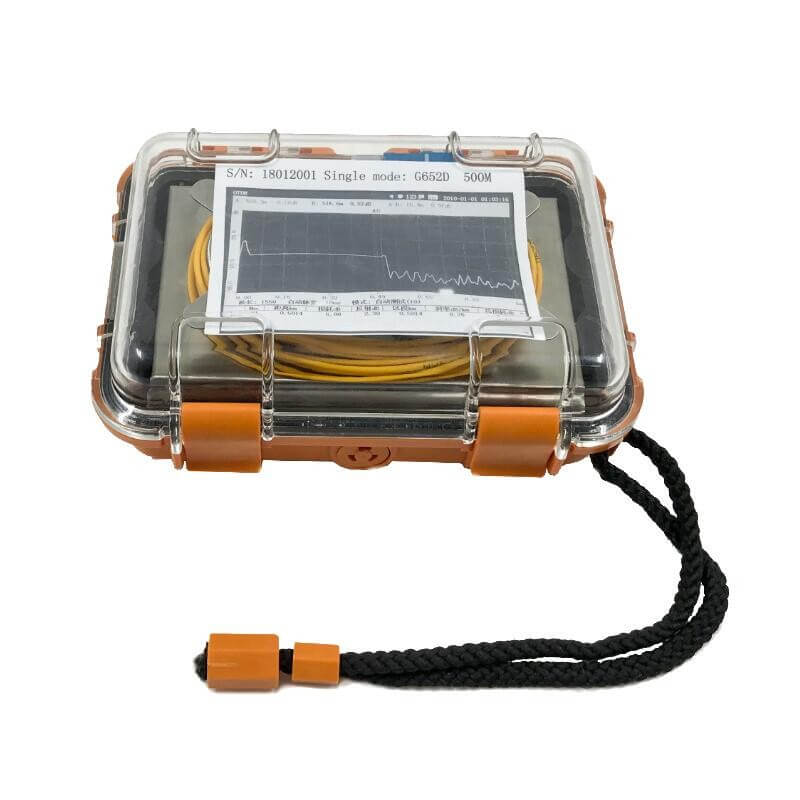

OTDR Launch Cable Box is used with Optical Time Domain Reflectometer (OTDR) to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty
1 year warranty
